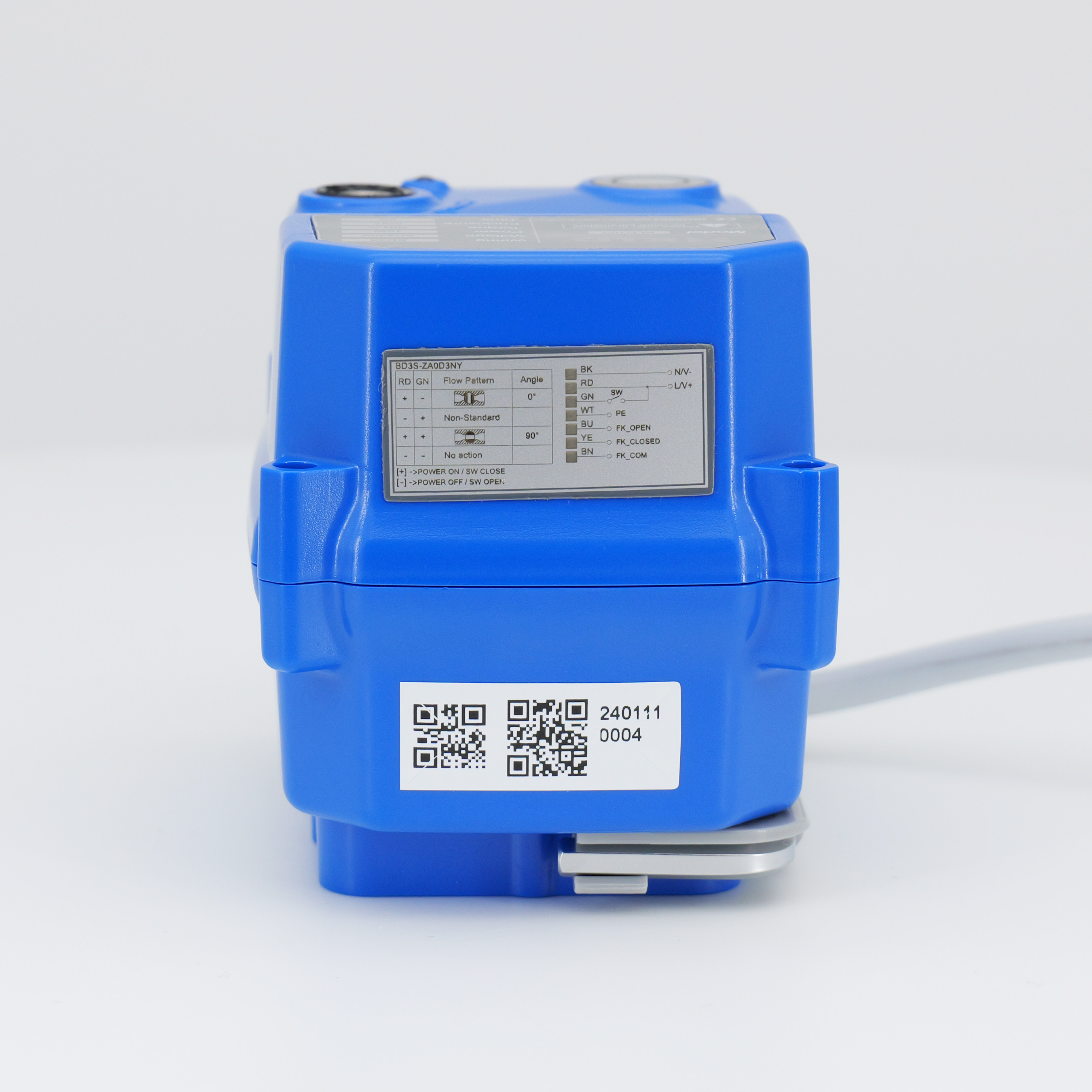

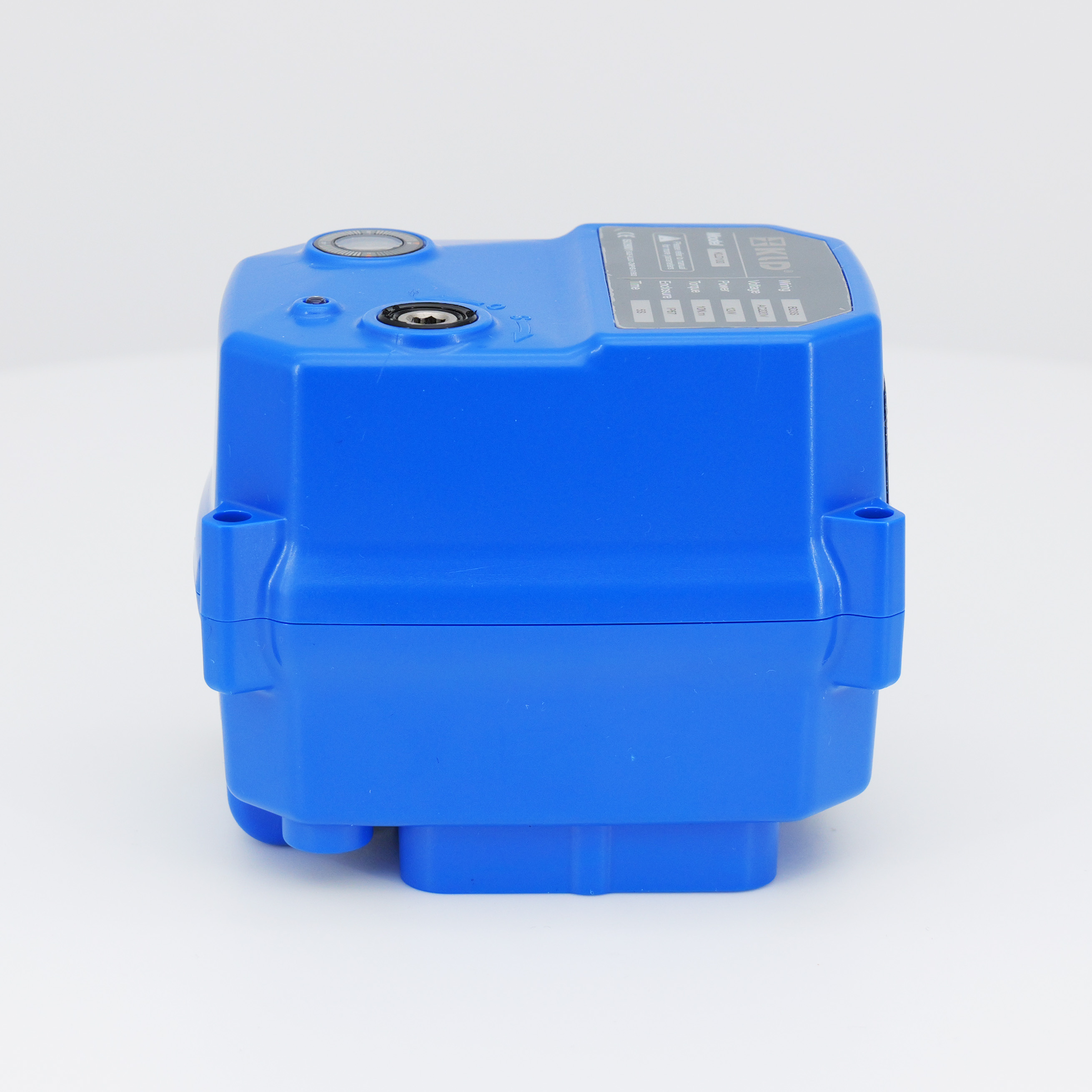

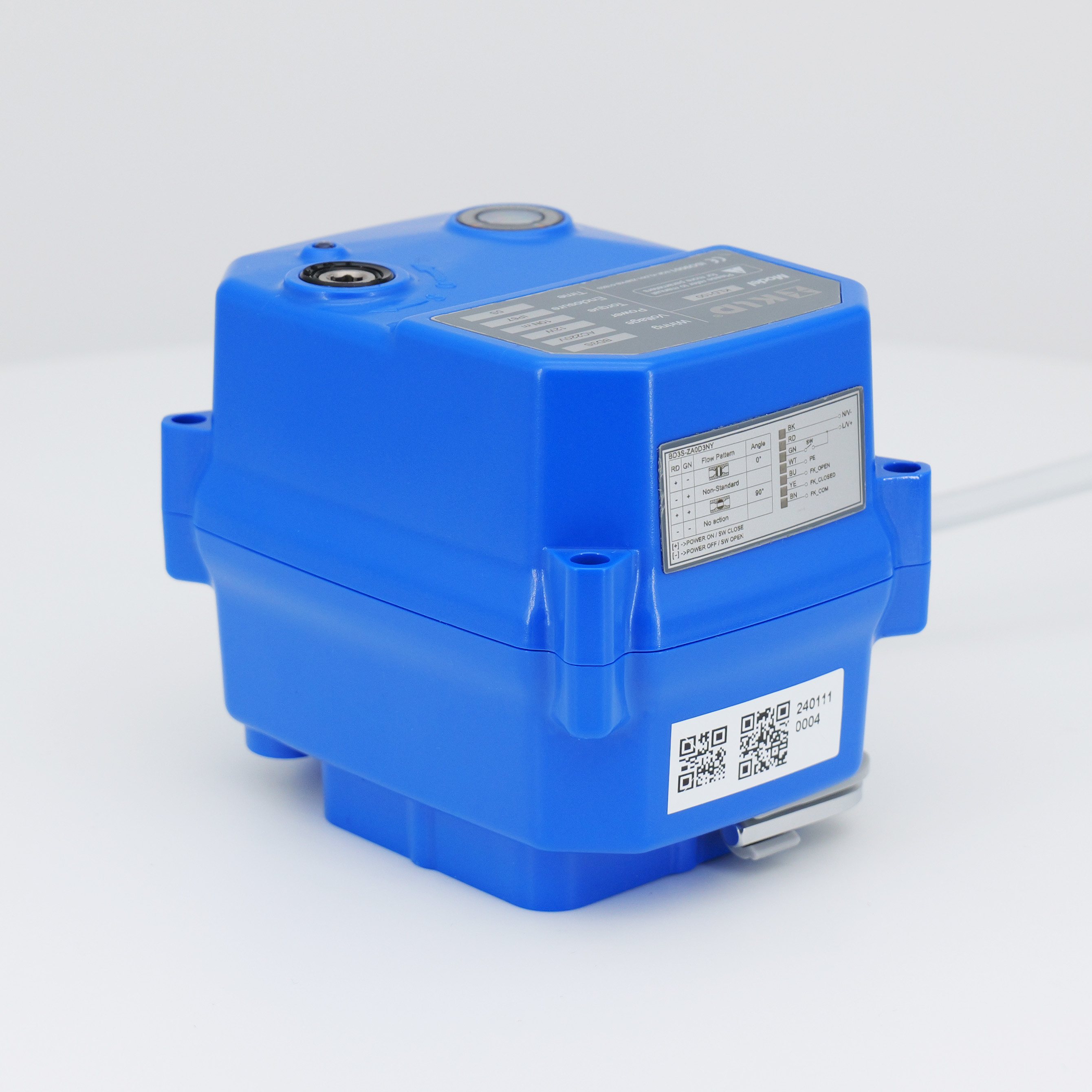

Description
Very compact housing offering 10Nm torque output with ISO5211 standard. Ideal to actuate your small valve sizes, such as brass, stainless steel or PVC ball / butterfly valves, for some high platform pvc valves, it can be direct mount on, no need for bracket.
Multi Voltage 24VAC/DC or 95-265VAC wide voltage range, reducing stock need, especially suitable for some applications with unstable voltage or high voltage in some countries like AU/NZ, Southeast Asian countries.
High speed 1 second fast running version available when operating on 24VDC motor, to suit for special application’s need and can be used to replace some pneumatic actuators if site is not convenient to prepare air source.
Failsafe function optional, fitted with internal super capacitor, you can set normally open, normally close or keep position from smart menu.

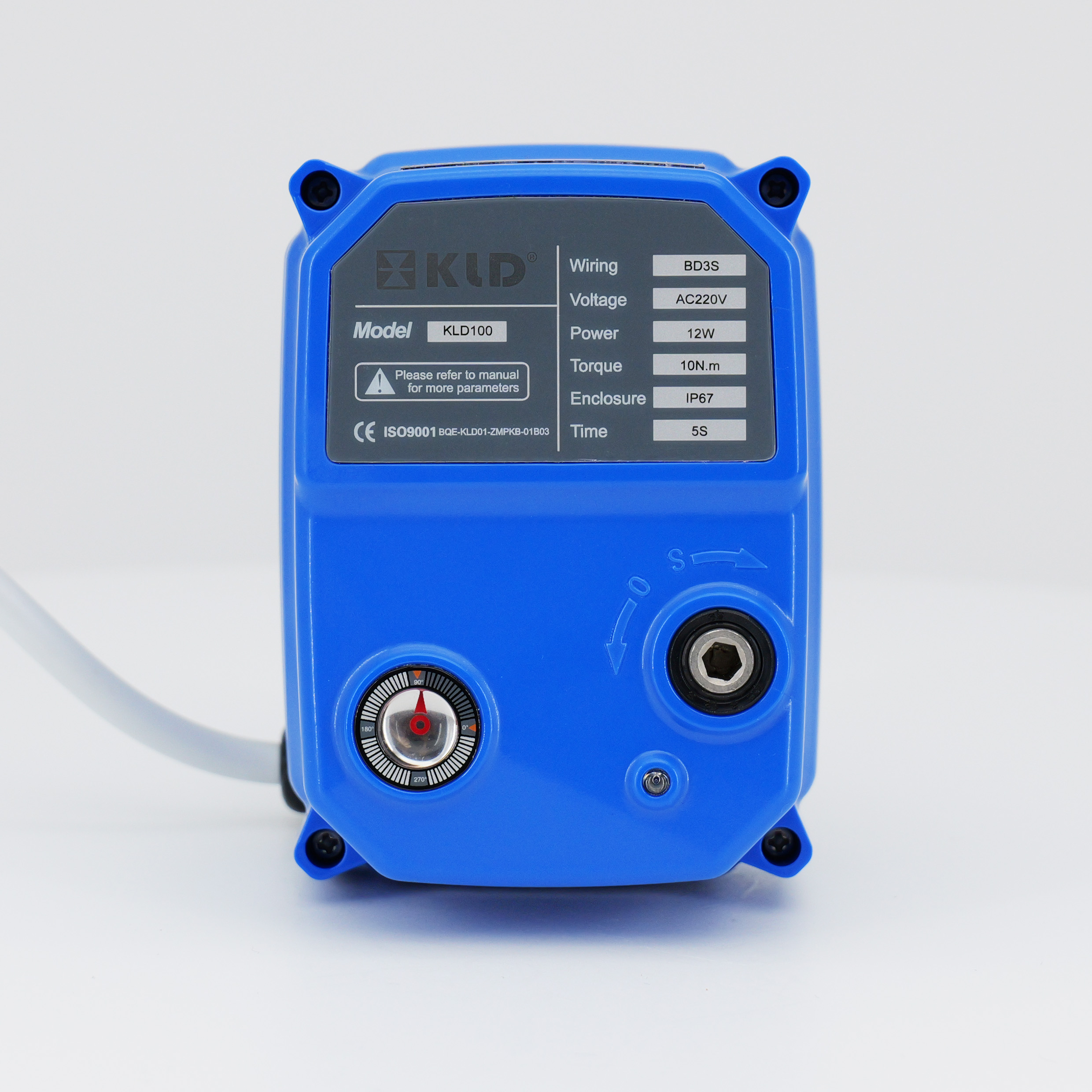

Manual override function is safe and convenient, actuators are fitted with hexagon wrench, but manual override can only be used when power is cut.

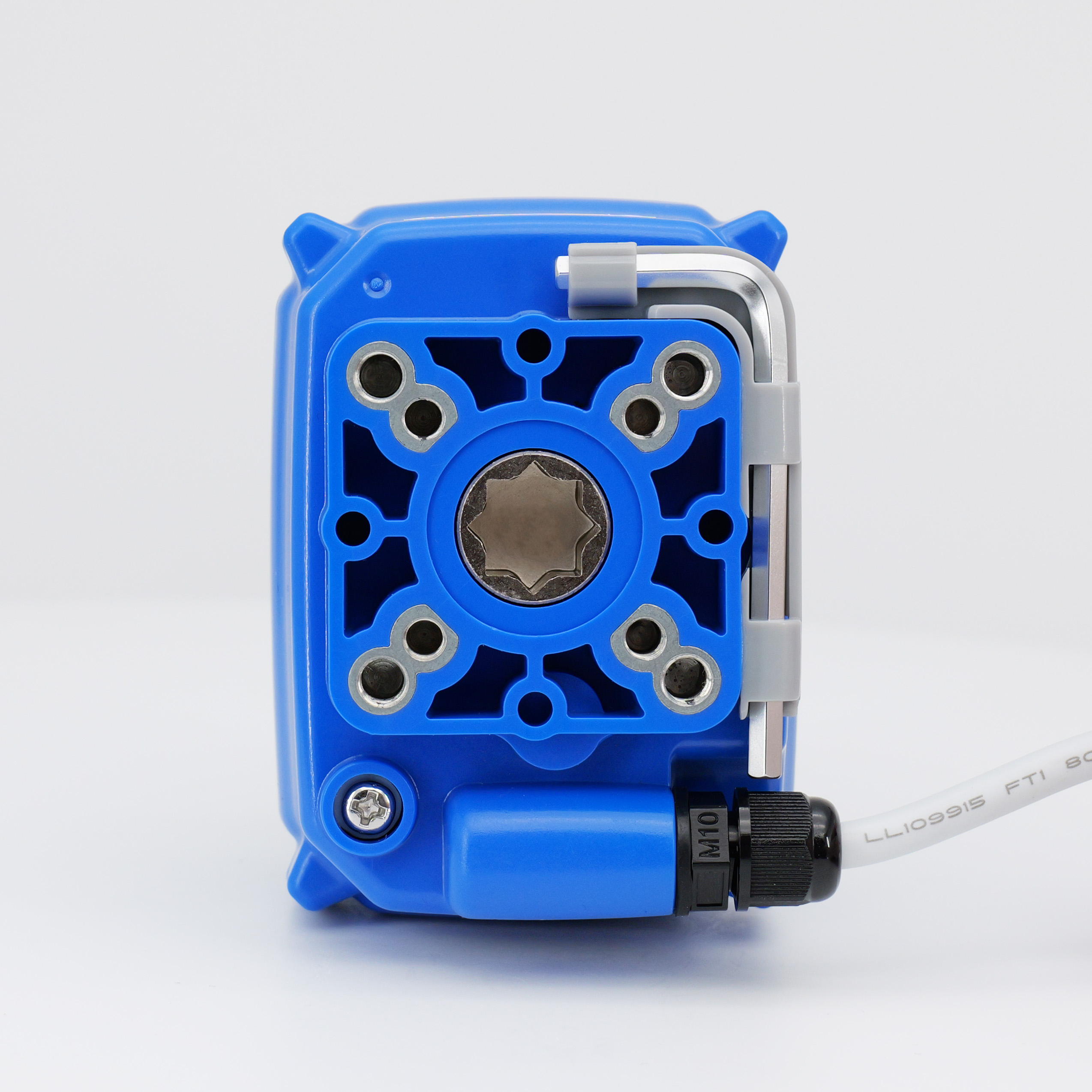

ISO 5211 F03/F05, convenient and compatible for other ISO valves, direct mount on, convenient for your valve installment, adjustment and replacement. We can offer different sizes of adaptor sleeve for different stem size.
Technical specifications include
Rated Torque: 10Nm
Nominal Voltage: DC12V、DC24V、AC24V、AC110V、AC230V、AC/DC24V、AC/DC95~265V
Function Options: Failsafe, High Speed, Alarm output, LED Status light
Install Valves: 2-way, 3-way ball valve and butterfly valve
Wiring: B2S、B3S、BD3S、KT32S,etc
Purchase Guide KLD100N（Normal on-off Actuator）
Voltage | Torque | Power | Time | Fuse | Peak Current | Wiring | Max Rotation | Enclosure | Housing | Output Shaft |
DC12Vh | 10Nm | 24W | 5s | 4A | 1.6A | B2S/B3S/BD3S | 360° | IP67 or F Type | PC alloy | Female Octagon or male square |
DC12V | 12W | 2A | 0.83A | |||||||
AC/DC24V | 0.5A | |||||||||
AC/DC95-265V | 1A | 0.8A | B3S/BD3S | |||||||
AC24V | 10s | 0.5A | B3S | |||||||
AC110V | 0.1A | |||||||||
AC220V | 0.05A |
Purchase Guide KLD100N（Normal on-off Actuator-High-speed）
Voltage | Torque | Power | Time | Fuse | Peak Current | Wiring | Max Rotation | Enclosure | Housing | Output Shaft |
DC24V | 6Nm | 24W | 2s | 2A | 1A | B2S/B3S/BD3S | 360° | IP67 or F Type | PC alloy | Female Octagon or male square |
Purchase Guide KLD100N-KT（Normal on-off Actuator with capacitor return）
Voltage | Torque | Power | Time | Fuse | Peak Current | Wiring | Max Rotation | Enclosure | Housing | Output Shaft |
| DC12Vh | 6Nm | 24W | 5s | 4A | 2A | KT32S | 360° | IP67 or F Type | PC alloy | Female Octagon or male square |
| DC12V | 18W | 3A | 1.5A | |||||||
| AC/DC24V | 2A | 0.75A | ||||||||
| AC/DC95-265V | 1A | 0.08A |
Materials & Dimensions
※Subject to technical changes
Description
Very compact housing offering 10Nm torque output with ISO5211 standard. Ideal to actuate your small valve sizes, such as brass, stainless steel or PVC ball / butterfly valves, for some high platform pvc valves, it can be direct mount on, no need for bracket.
Multi Voltage 24VAC/DC or 95-265VAC wide voltage range, reducing stock need, especially suitable for some applications with unstable voltage or high voltage in some countries like AU/NZ, Southeast Asian countries.
High speed 1 second fast running version available when operating on 24VDC motor, to suit for special application’s need and can be used to replace some pneumatic actuators if site is not convenient to prepare air source.
Failsafe function optional, fitted with internal super capacitor, you can set normally open, normally close or keep position from smart menu.
Manual override function is safe and convenient, actuators are fitted with hexagon wrench, but manual override can only be used when power is cut.
ISO 5211 F03/F05, convenient and compatible for other ISO valves, direct mount on, convenient for your valve installment, adjustment and replacement. We can offer different sizes of adaptor sleeve for different stem size.
Technical specifications include
Rated Torque: 10Nm
Nominal Voltage: DC12V、DC24V、AC24V、AC110V、AC230V、AC/DC24V、AC/DC95~265V
Function Options: Failsafe, High Speed, Alarm output, LED Status light
Install Valves: 2-way, 3-way ball valve and butterfly valve
Wiring: B2S、B3S、BD3S、KT32S,etc
Purchase Guide KLD100N（Normal on-off Actuator）
Voltage | Torque | Power | Time | Fuse | Peak Current | Wiring | Max Rotation | Enclosure | Housing | Output Shaft |
DC12Vh | 10Nm | 24W | 5s | 4A | 1.6A | B2S/B3S/BD3S | 360° | IP67 or F Type | PC alloy | Female Octagon or male square |
DC12V | 12W | 2A | 0.83A | |||||||
AC/DC24V | 0.5A | |||||||||
AC/DC95-265V | 1A | 0.8A | B3S/BD3S | |||||||
AC24V | 10s | 0.5A | B3S | |||||||
AC110V | 0.1A | |||||||||
AC220V | 0.05A |
Purchase Guide KLD100N（Normal on-off Actuator-High-speed）
Voltage | Torque | Power | Time | Fuse | Peak Current | Wiring | Max Rotation | Enclosure | Housing | Output Shaft |
DC24V | 6Nm | 24W | 2s | 2A | 1A | B2S/B3S/BD3S | 360° | IP67 or F Type | PC alloy | Female Octagon or male square |
Purchase Guide KLD100N-KT（Normal on-off Actuator with capacitor return）
Voltage | Torque | Power | Time | Fuse | Peak Current | Wiring | Max Rotation | Enclosure | Housing | Output Shaft |
| DC12Vh | 6Nm | 24W | 5s | 4A | 2A | KT32S | 360° | IP67 or F Type | PC alloy | Female Octagon or male square |
| DC12V | 18W | 3A | 1.5A | |||||||
| AC/DC24V | 2A | 0.75A | ||||||||
| AC/DC95-265V | 1A | 0.08A |
Materials & Dimensions
※Subject to technical changes
