Description

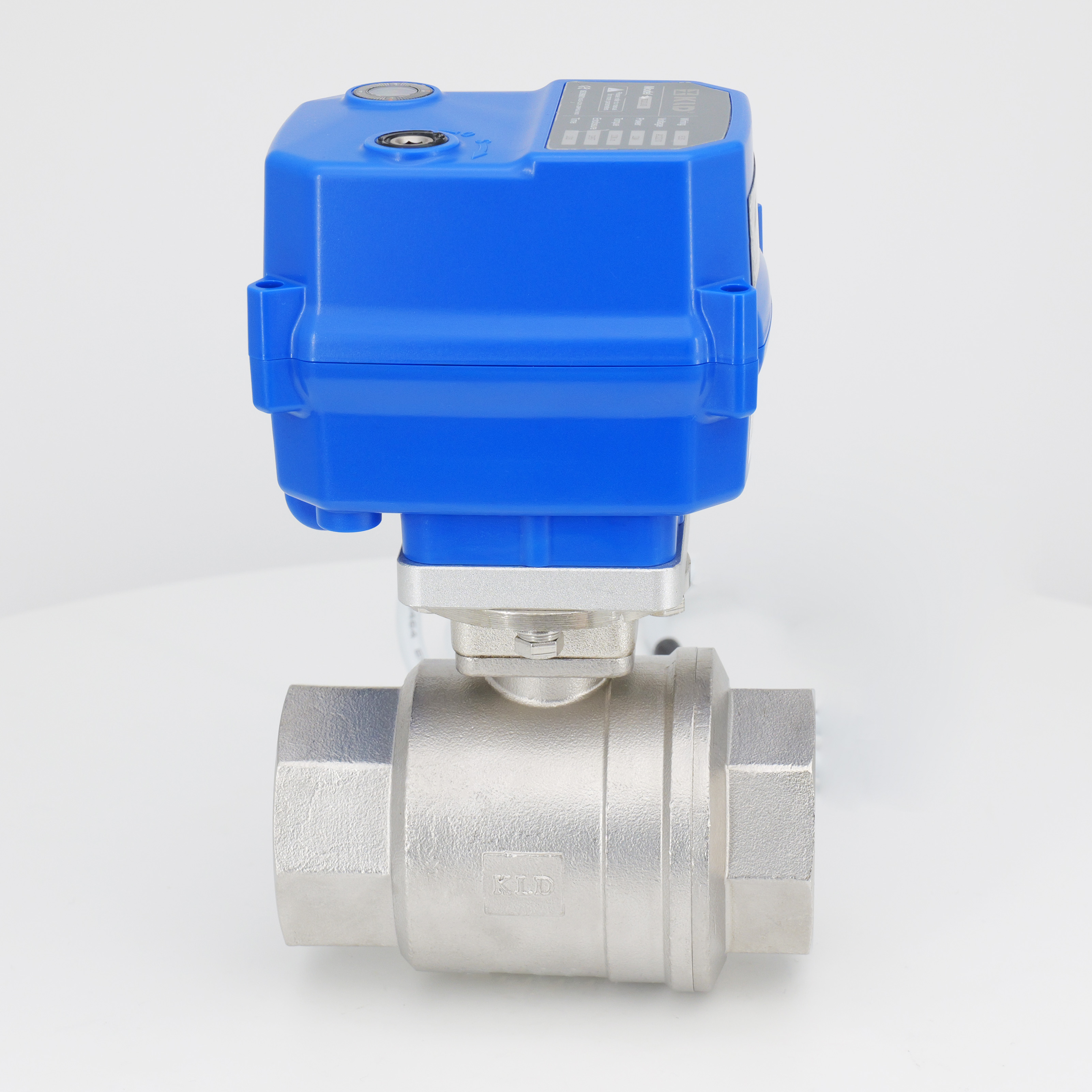

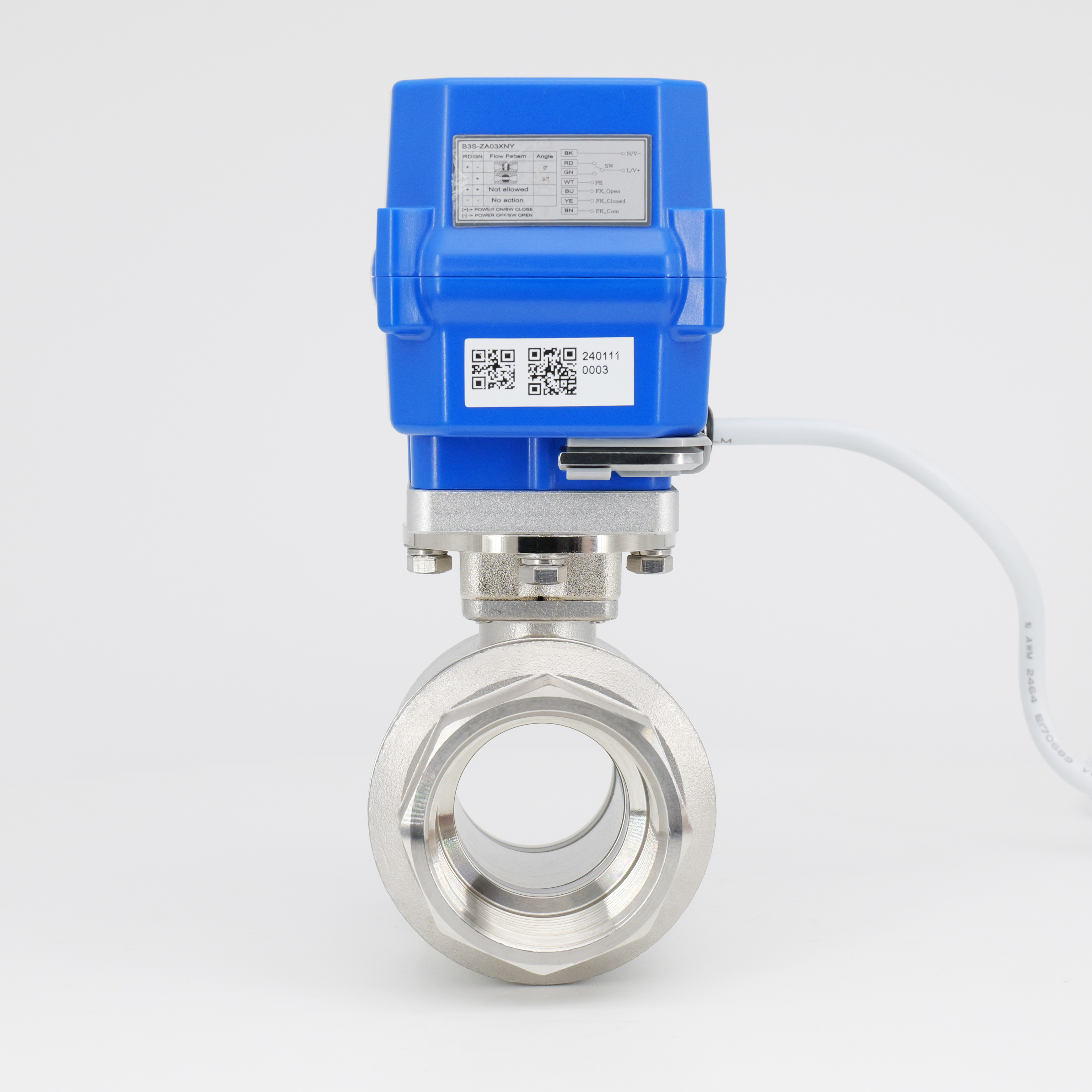

The KLD100 2-way full port motorized ball valve (1/2" to 1-1/4") features a full port design, ensuring a large flow area for the medium, and is suitable for a variety of flow requirements. It has a compact size, making it ideal for use in small equipment, and it helps save space. The valve is driven by a brushless motor, which ensures stable and reliable operation and has a longer lifespan compared to brush motors. It uses a standard interface, facilitating easy connection to various systems. The valve has a manual Override for safe and convenient operation and an IP67 protection rating. Fail safe(capacitor return) function, you can choose normally close or normally open, so it is an better alternative to solenoid valves, with bigger flow rate and avoid water hammer.
Technical specifications include
Valve Type: Two-way electric ball valve
Sizes: DN15, DN20, DN25, DN32
Pressure: Maximum 1.0MPa (PN10)
Flow: Varies with valve size and application
Medium Temperature: 0°C to 100°C
Ambient Temperature: -15°C to 45°C
This product demonstrates significant advantages in miniaturization, longevity, response speed, and safety, making it an excellent electric ball valve that can meet the demands of various industrial automation applications.
Fast running version or long service life are optional.
CE approved
Applications
Water treatment system
Water-saving and other eco-friendly system
Small equipment for automatic control
HVAC
Technical Data
| Rated Torque | Nominal Voltage | Power | Wiring | Running Time | Protection Class | Max Pressure | Medium Temp. |
| 6NM | DC24V | 24W | B2S/B3S/BD3S | 2S | IP67 or F Type | 1.0Mpa | 0-100℃※ |
| 10NM/6NM@KT | AC/DC95-265V | 12W/18W@KT | B3S/BD3S/KT32S | 5S | |||
| AC/DC24V | B2S/B3S/BD3S/KT32S | ||||||
| DC12V | |||||||
| 10NM | AC24V | 12W | B3S | 10S | |||
| AC110V | |||||||
| AC220V |
※It needs to add high-temperature bracket if medium temperature is over 100℃.
Main Components Diagram
Main Components
| No. | Components | Material | Qty |
| 1 | Body | brass/304/316L | 1 |
| 2 | Ball | 304/316L | 1 |
| 3 | Ball seat | PTFE | 1 |
| 4 | Cable connector | Nylon, nickel-plated brass | 1 |
| 5 | Housing | PC alloy | 1 |
| 6 | Label | PC | 1 |
| 7 | Indication window | Transparent PC | 1 |
| 8 | Hexagonal wrench | Tool steel | 1 |
Dimensions【DN15-DN32】
Dimensions(mm)
DN | d | L1=L2 | L | G1 | H1 | H2 | H | F | W(Kg) |
DN15 | 15 | 13 | 57 | G1/2″ | 16.5 | 21.25 | 134.35 | 27 | 1.5 |
DN20 | 20 | 16 | 70 | G3/4″ | 21.5 | 25.80 | 143.90 | 32 | 2.0 |
DN25 | 25 | 18 | 84 | G1″ | 26.7 | 33.50 | 156.80 | 38 | 2.5 |
DN32 | 32 | 20 | 97 | G1-1/4″ | 31.5 | 37.50 | 165.60 | 48 | 3.0 |
Notes:BSP,NPT,GB ect. is optional.
Functional Data
| Angle of Rotation | 90°±2° |
Degree of Protection | IP67 As Per En60529/GB4208-2008(all directions) F type [damp-proof,adding dehumidifying heater] |
| Manual Override | Matching hexagon wrench(only using at no power) |
| Position Indicator |  |
Working Conditions
Ambient Temp. | -15℃<t<45℃(can be customized for other temp.) |
Ambient Humidity | 5-95%RH, non-condensing |
| Medium Temp. | 0-100℃ |
※Subject to technical changes
Description
The KLD100 2-way full port motorized ball valve (1/2" to 1-1/4") features a full port design, ensuring a large flow area for the medium, and is suitable for a variety of flow requirements. It has a compact size, making it ideal for use in small equipment, and it helps save space. The valve is driven by a brushless motor, which ensures stable and reliable operation and has a longer lifespan compared to brush motors. It uses a standard interface, facilitating easy connection to various systems. The valve has a manual Override for safe and convenient operation and an IP67 protection rating. Fail safe(capacitor return) function, you can choose normally close or normally open, so it is an better alternative to solenoid valves, with bigger flow rate and avoid water hammer.
Technical specifications include
Valve Type: Two-way electric ball valve
Sizes: DN15, DN20, DN25, DN32
Pressure: Maximum 1.0MPa (PN10)
Flow: Varies with valve size and application
Medium Temperature: 0°C to 100°C
Ambient Temperature: -15°C to 45°C
This product demonstrates significant advantages in miniaturization, longevity, response speed, and safety, making it an excellent electric ball valve that can meet the demands of various industrial automation applications.
Fast running version or long service life are optional.
CE approved
Applications
Water treatment system
Water-saving and other eco-friendly system
Small equipment for automatic control
HVAC
Technical Data
| Rated Torque | Nominal Voltage | Power | Wiring | Running Time | Protection Class | Max Pressure | Medium Temp. |
| 6NM | DC24V | 24W | B2S/B3S/BD3S | 2S | IP67 or F Type | 1.0Mpa | 0-100℃※ |
| 10NM/6NM@KT | AC/DC95-265V | 12W/18W@KT | B3S/BD3S/KT32S | 5S | |||
| AC/DC24V | B2S/B3S/BD3S/KT32S | ||||||
| DC12V | |||||||
| 10NM | AC24V | 12W | B3S | 10S | |||
| AC110V | |||||||
| AC220V |
※It needs to add high-temperature bracket if medium temperature is over 100℃.
Main Components Diagram
Main Components
| No. | Components | Material | Qty |
| 1 | Body | brass/304/316L | 1 |
| 2 | Ball | 304/316L | 1 |
| 3 | Ball seat | PTFE | 1 |
| 4 | Cable connector | Nylon, nickel-plated brass | 1 |
| 5 | Housing | PC alloy | 1 |
| 6 | Label | PC | 1 |
| 7 | Indication window | Transparent PC | 1 |
| 8 | Hexagonal wrench | Tool steel | 1 |
Dimensions【DN15-DN32】
Dimensions(mm)
DN | d | L1=L2 | L | G1 | H1 | H2 | H | F | W(Kg) |
DN15 | 15 | 13 | 57 | G1/2″ | 16.5 | 21.25 | 134.35 | 27 | 1.5 |
DN20 | 20 | 16 | 70 | G3/4″ | 21.5 | 25.80 | 143.90 | 32 | 2.0 |
DN25 | 25 | 18 | 84 | G1″ | 26.7 | 33.50 | 156.80 | 38 | 2.5 |
DN32 | 32 | 20 | 97 | G1-1/4″ | 31.5 | 37.50 | 165.60 | 48 | 3.0 |
Notes:BSP,NPT,GB ect. is optional.
Functional Data
| Angle of Rotation | 90°±2° |
Degree of Protection | IP67 As Per En60529/GB4208-2008(all directions) F type [damp-proof,adding dehumidifying heater] |
| Manual Override | Matching hexagon wrench(only using at no power) |
| Position Indicator | |
Working Conditions
Ambient Temp. | -15℃<t<45℃(can be customized for other temp.) |
Ambient Humidity | 5-95%RH, non-condensing |
| Medium Temp. | 0-100℃ |
※Subject to technical changes
