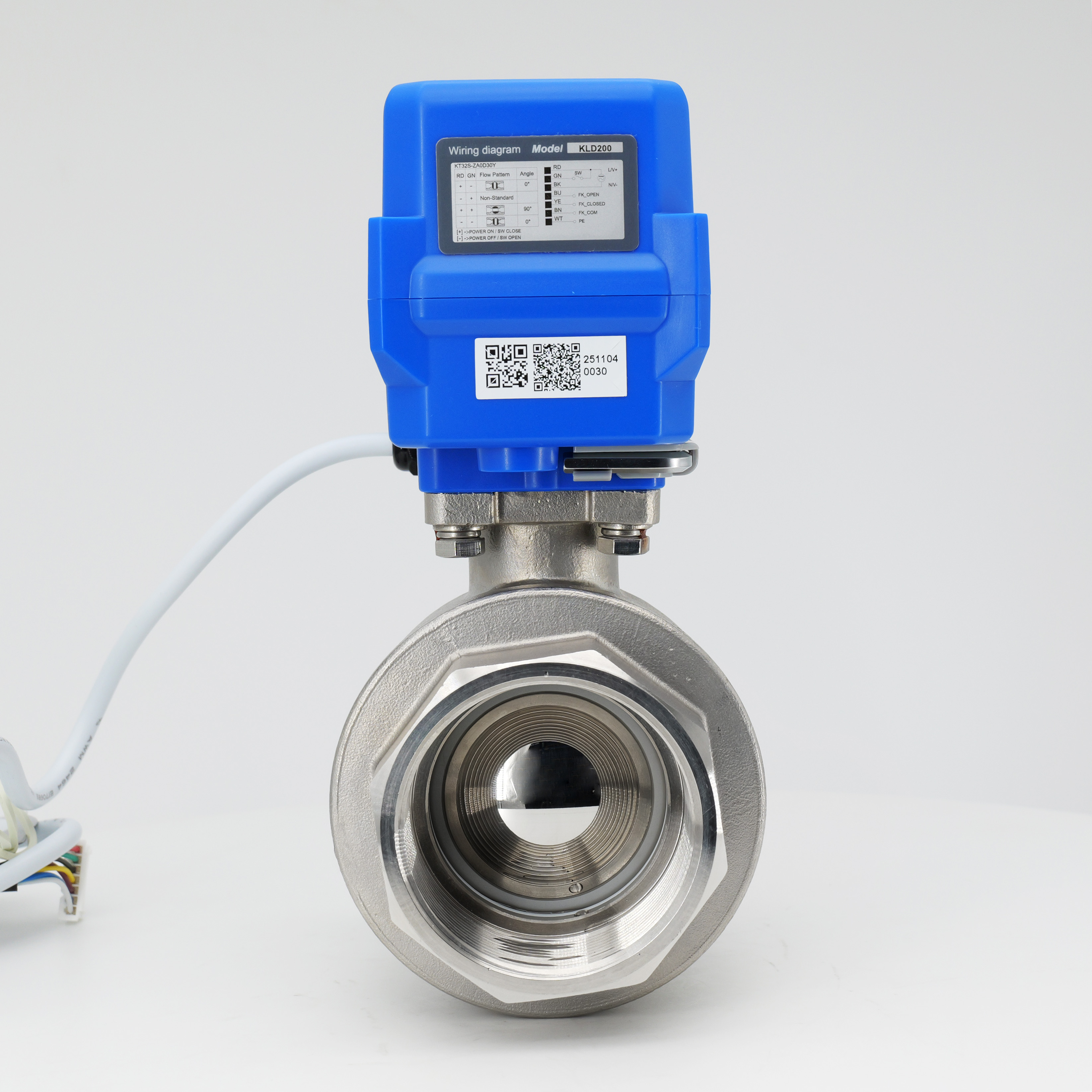

Description

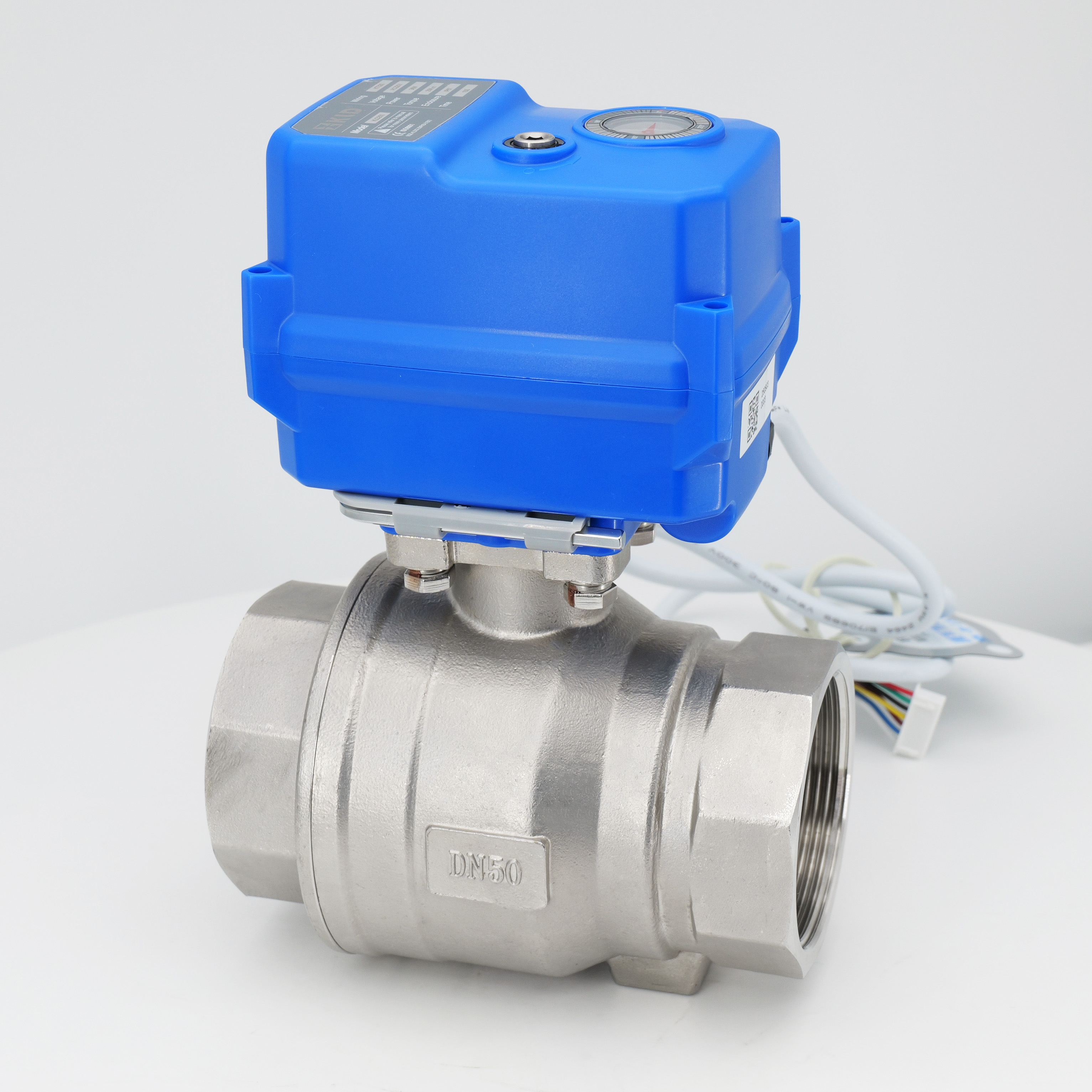

KLD200 2-way full port motorized ball valve (1" to 2") is designed with a compact size, especially suitable for small-sized equipment with space limitations. It uses a brushless motor, with high reliability and a long service life of up to 20,000 cycles. The valve has a manual Override for safe and convenient operation and an IP67 protection rating. Fail safe(capacitor return) function, you can choose normally close or normally open, so it is an better alternative to solenoid valves, with bigger flow rate and avoid water hammer.
The technical specifications include
Valve body type: Two-way electric ball valve
Diameter range: DN25, DN32, DN40, DN50
Pressure: Maximum 1.0MPa (PN10)
Flow: Varies with valve size and application
Medium temperature: 0°C to 100°C
Ambient temperature: -15°C to 45°C
KLD200 2-way full port motorized ball valve (1" to 2") features a compact size, fast response, and high reliability, making it suitable for applications in small equipment automation, water-saving systems, and other fields.
Fast running version or long service life are optional.
CE approved
Applications
Water treatment system
Water-saving and other eco-friendly system
Small equipment for automatic control
HVAC
Technical Data
Rated Torque | Nominal Voltage | Power | Wiring | Running Time | Protection Class | Max Pressure | Medium Temp. |
20NM | DC24V | 85W | B3S/BD3S | 1S | IP67 or F Type | 1.0Mpa | 0-100℃※ |
15NM | DC12V | 15W/ 25W@KT | B2S/B3S/ BD3S/KT32S | 15S | |||
20NM | DC12Vh | 25W@10S/ 36W@KT | 10S | ||||
20NM 15Nm@6S | AC/DC24V | 15W@10S/25W@6S/36W@KT | 10S/6S | ||||
AC/DC95-265V | 15W@10S/25W@6S/36W@KT | B3S/BD3S/ KT32S | |||||
20NM | AC24V | 15W | B3S/BD3S | 15S | |||
AC110V | |||||||
AC220V |
※It needs to add high-temperature bracket if medium temperature is over 100 ℃.
Main Components Diagram
Main Components
| No. | Components | Material | Qty |
| 1 | Body | 304/316/316L/brass | 1 |
| 2 | Ball | 304/316/316L | 1 |
| 3 | Ball seat | PTFE | 1 |
| 4 | Cable connector | Nylon,nickel-plated brass | 1 |
| 5 | Housing | PC alloy/die-casting aluminum | 1 |
| 6 | Label | PC | 1 |
| 7 | Indication window | Transparent PC | 1 |
| 8 | Hexagonal wrench | Tool steel | 1 |

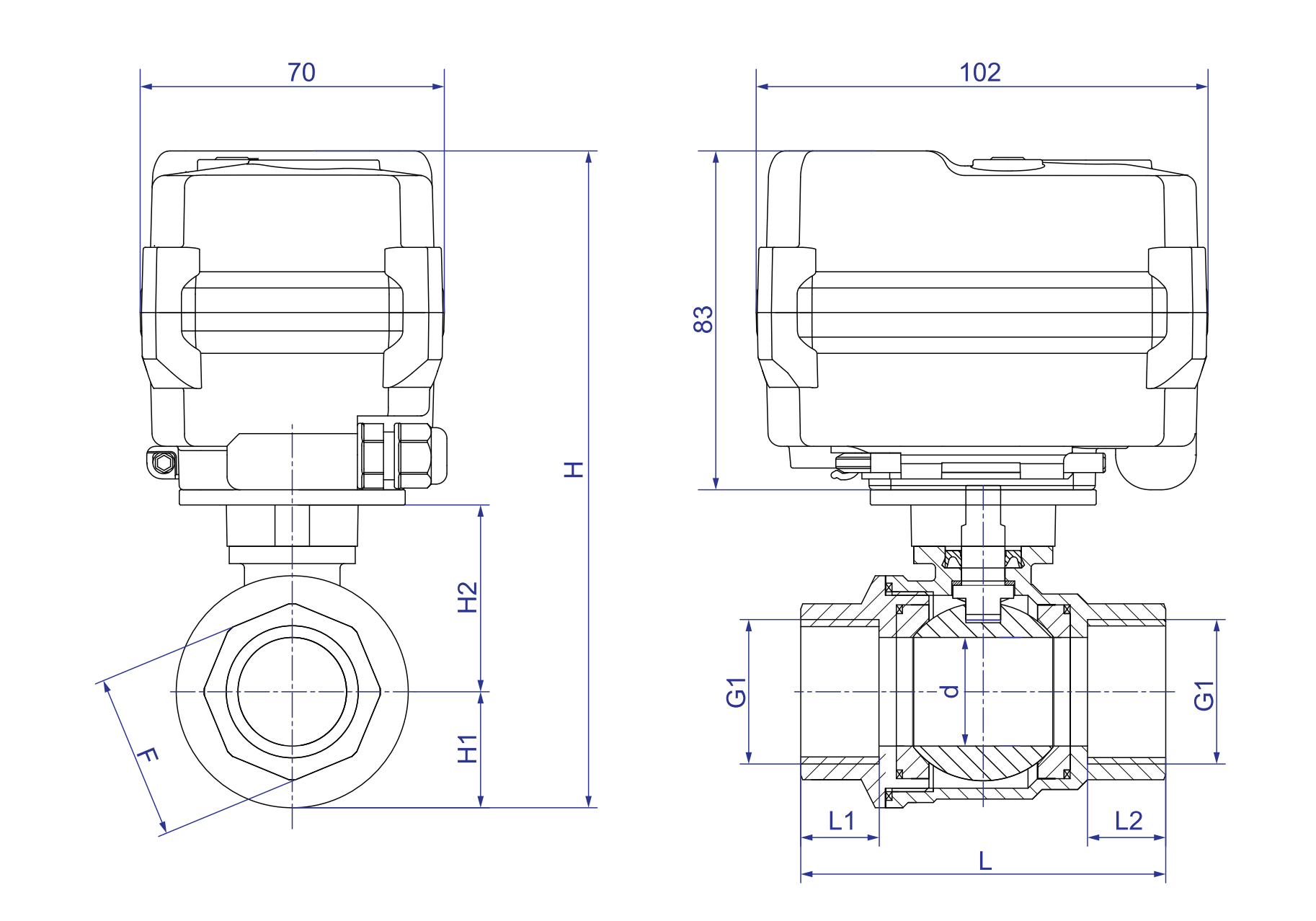

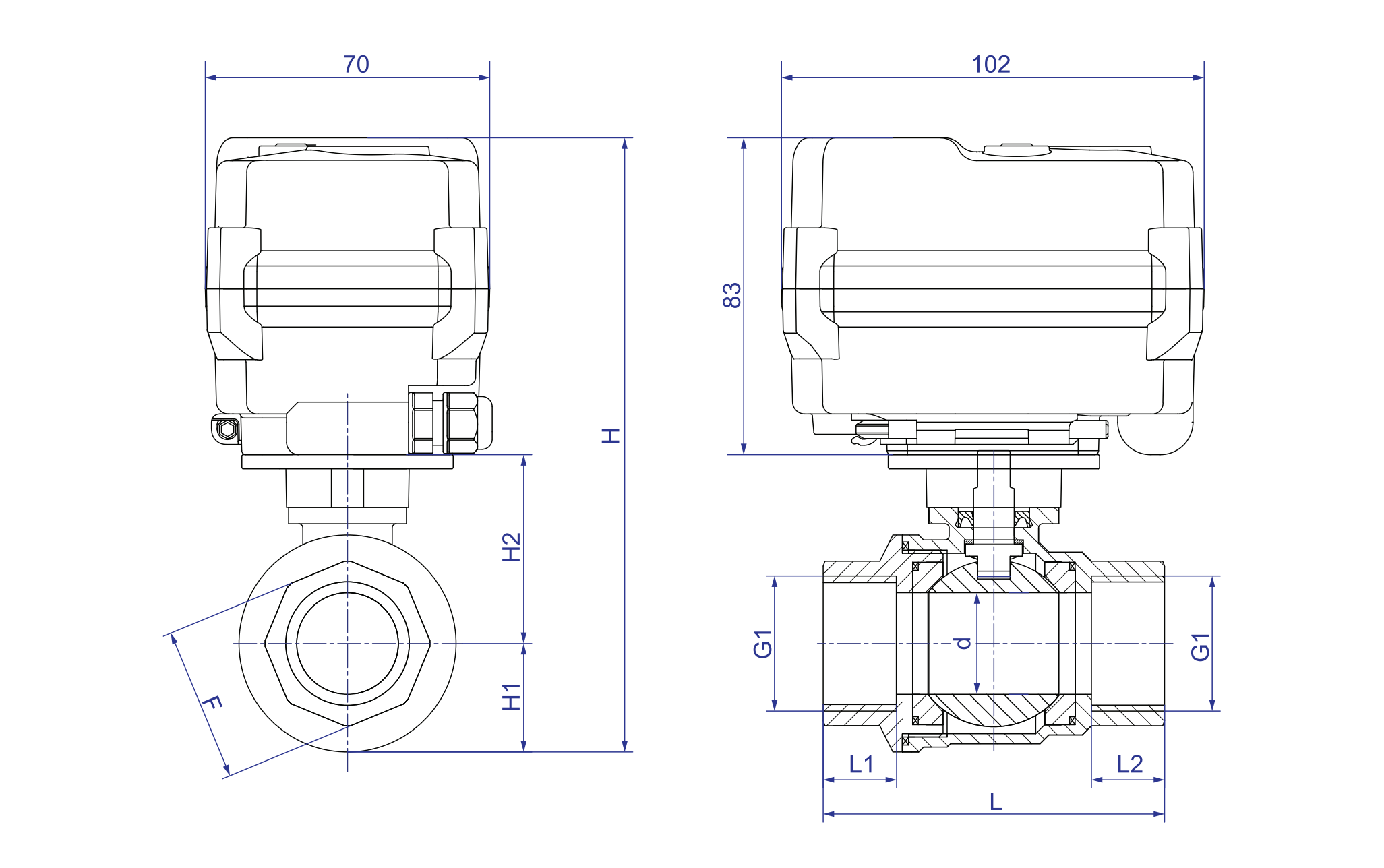

Dimensions【DN25-DN50】
Dimensions(mm)
DN | d | L1=L2 | L | G1 | H1 | H2 | H | F | Material | W(Kg) |
DN25 | 25 | 18 | 84 | G1″ | 26.70 | 46.5 | 156.20 | 38 | 304/316L/Cu | 1.55 |
DN32 | 32 | 20 | 97 | G1-1/4″ | 31.50 | 50.5 | 165.00 | 48 | 304/316L/Cu | 1.87 |
DN40 | 38 | 20 | 110 | G1-1/2″ | 38.25 | 70.5 | 191.75 | 56 | 304/316 | 2.46 |
DN50 | 50 | 29 | 130 | G2″ | 45.25 | 78.5 | 206.75 | 68 | 304/316 | 3.39 |
Notes:BSP,NPT,GB ect. is optional.
Functional Data
Angle of Rotation | 90°±2° |
Degree of Protection | IP67 As Per En60529/GB4208-2008(alldirections) F type [damp-proof,adding dehumidifying heater] |
Manual Override | Matching hexagon wrench(only using at no power) |
| Position Indicator |  |
Working Conditions
Ambient Temp. | -15℃＜t＜45℃（can be customized for other temp.） |
Ambient Humidity | 5-95%RH,non-condensing |
| Medium Temp. | 0—100℃ |
※Subject to technical changes
Description
KLD200 2-way full port motorized ball valve (1" to 2") is designed with a compact size, especially suitable for small-sized equipment with space limitations. It uses a brushless motor, with high reliability and a long service life of up to 20,000 cycles. The valve has a manual Override for safe and convenient operation and an IP67 protection rating. Fail safe(capacitor return) function, you can choose normally close or normally open, so it is an better alternative to solenoid valves, with bigger flow rate and avoid water hammer.
The technical specifications include
Valve body type: Two-way electric ball valve
Diameter range: DN25, DN32, DN40, DN50
Pressure: Maximum 1.0MPa (PN10)
Flow: Varies with valve size and application
Medium temperature: 0°C to 100°C
Ambient temperature: -15°C to 45°C
KLD200 2-way full port motorized ball valve (1" to 2") features a compact size, fast response, and high reliability, making it suitable for applications in small equipment automation, water-saving systems, and other fields.
Fast running version or long service life are optional.
CE approved
Applications
Water treatment system
Water-saving and other eco-friendly system
Small equipment for automatic control
HVAC
Technical Data
Rated Torque | Nominal Voltage | Power | Wiring | Running Time | Protection Class | Max Pressure | Medium Temp. |
20NM | DC24V | 85W | B3S/BD3S | 1S | IP67 or F Type | 1.0Mpa | 0-100℃※ |
15NM | DC12V | 15W/ 25W@KT | B2S/B3S/ BD3S/KT32S | 15S | |||
20NM | DC12Vh | 25W@10S/ 36W@KT | 10S | ||||
20NM 15Nm@6S | AC/DC24V | 15W@10S/25W@6S/36W@KT | 10S/6S | ||||
AC/DC95-265V | 15W@10S/25W@6S/36W@KT | B3S/BD3S/ KT32S | |||||
20NM | AC24V | 15W | B3S/BD3S | 15S | |||
AC110V | |||||||
AC220V |
※It needs to add high-temperature bracket if medium temperature is over 100 ℃.
Main Components Diagram
Main Components
| No. | Components | Material | Qty |
| 1 | Body | 304/316/316L/brass | 1 |
| 2 | Ball | 304/316/316L | 1 |
| 3 | Ball seat | PTFE | 1 |
| 4 | Cable connector | Nylon,nickel-plated brass | 1 |
| 5 | Housing | PC alloy/die-casting aluminum | 1 |
| 6 | Label | PC | 1 |
| 7 | Indication window | Transparent PC | 1 |
| 8 | Hexagonal wrench | Tool steel | 1 |
Dimensions【DN25-DN50】
Dimensions(mm)
DN | d | L1=L2 | L | G1 | H1 | H2 | H | F | Material | W(Kg) |
DN25 | 25 | 18 | 84 | G1″ | 26.70 | 46.5 | 156.20 | 38 | 304/316L/Cu | 1.55 |
DN32 | 32 | 20 | 97 | G1-1/4″ | 31.50 | 50.5 | 165.00 | 48 | 304/316L/Cu | 1.87 |
DN40 | 38 | 20 | 110 | G1-1/2″ | 38.25 | 70.5 | 191.75 | 56 | 304/316 | 2.46 |
DN50 | 50 | 29 | 130 | G2″ | 45.25 | 78.5 | 206.75 | 68 | 304/316 | 3.39 |
Notes:BSP,NPT,GB ect. is optional.
Functional Data
Angle of Rotation | 90°±2° |
Degree of Protection | IP67 As Per En60529/GB4208-2008(alldirections) F type [damp-proof,adding dehumidifying heater] |
Manual Override | Matching hexagon wrench(only using at no power) |
| Position Indicator | |
Working Conditions
Ambient Temp. | -15℃＜t＜45℃（can be customized for other temp.） |
Ambient Humidity | 5-95%RH,non-condensing |
| Medium Temp. | 0—100℃ |
※Subject to technical changes
