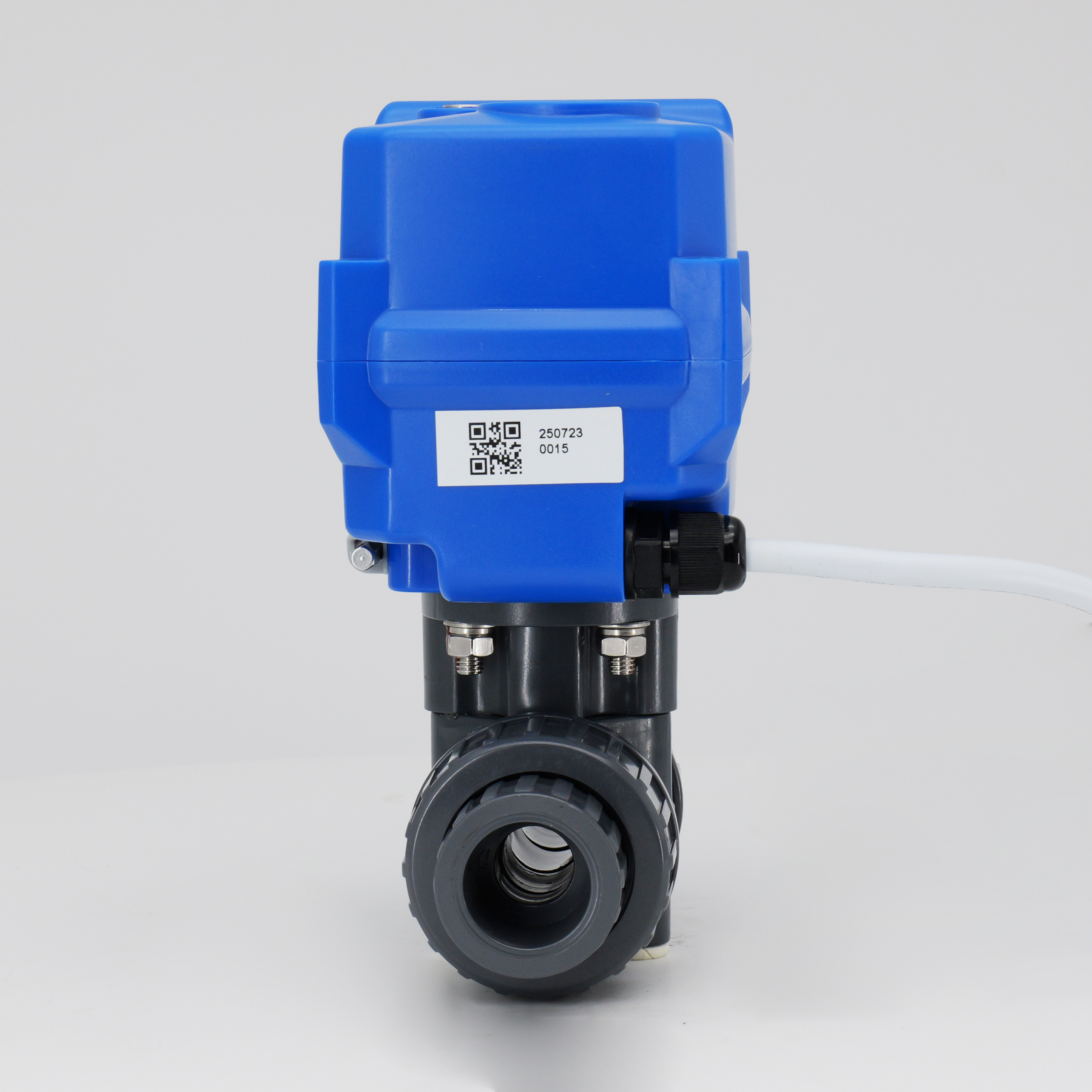

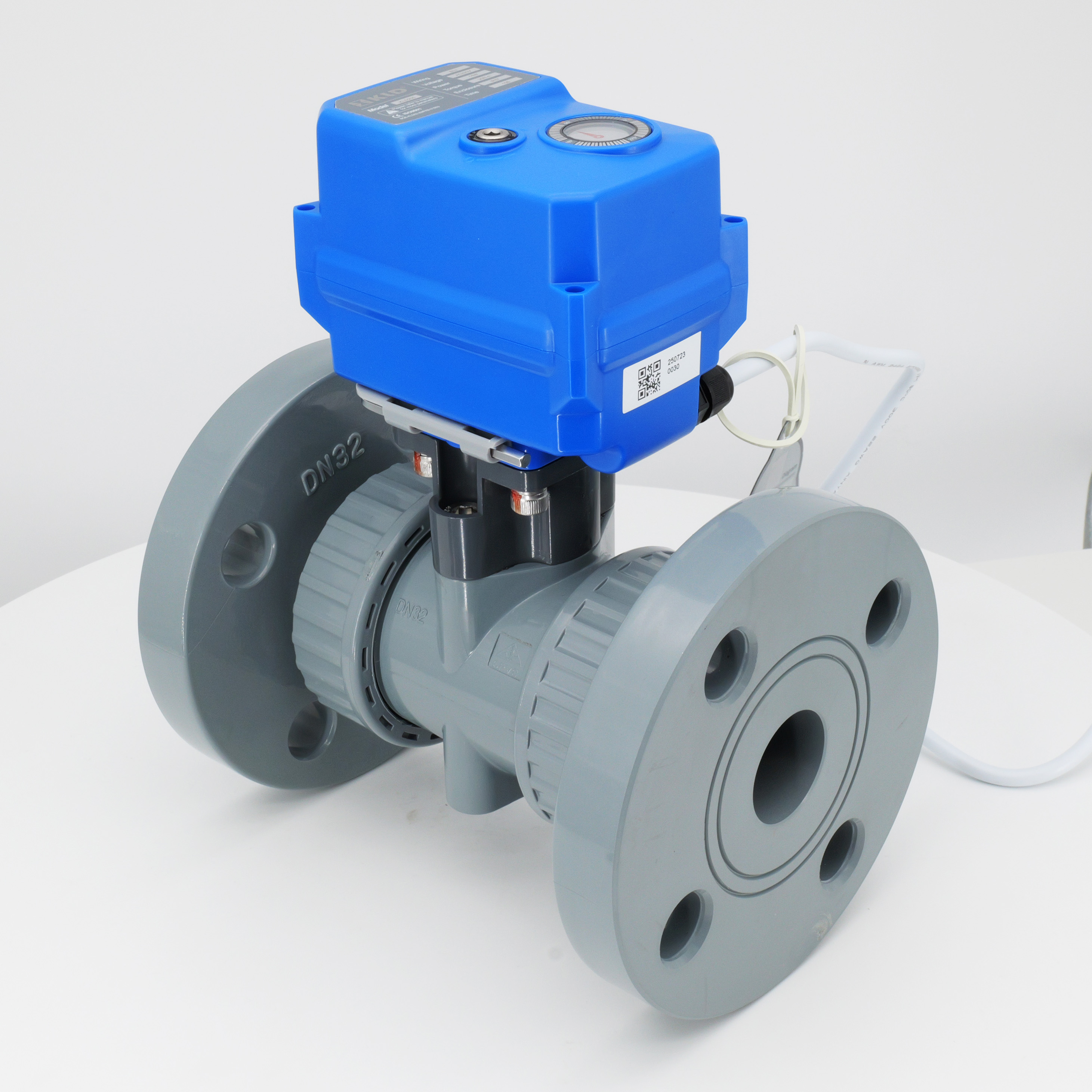

KLD200 2-way Motorized Ball Valve (plastic,1/2" To 2")

Features:

Compact size, suits for small equipment
Manual override is safe and convenient
Long service life--20,000 cycles ※
Brushless motor, stable and reliable
Fail-safe function available
High-speed 6s/1s available

※The data is on condition of laboratory environment.Different applications may differ.


Availability:



Inquire Add to Basket

Product Description

Description

The KLD200 2-way motorized ball valve (plastic,1/2" to 2") is made of plastic. Its main features include compact size, manual emergency operation, long service life up to 20,000 cycles, brushless motor drive, and fail-safe function. Fail safe(capacitor return) function, you can choose normally close or normally open, so it is an better alternative to solenoid valves. It is suitable for water treatment systems, water-saving systems, small automated equipment, medical equipment, ozone generators, and chlorine dioxide generators.

Technical specifications include

Valve Type: Two-way electric ball valve
Sizes: DN15, DN20, DN25, DN32, DN40, DN50
Pressure: Maximum 1.0MPa (PN10)
Flow: Varies with valve size and application
Medium temperature: 0°C to 45°C for UPVC and 0°C to 90°C for CPVC
Ambient temperature: -15°C to 45°C

The KLD200 2-way motorized ball valve (plastic,1/2" to 2") is a small, easy-to-operate, and reliable motor-driven plastic ball valve. With its excellent performance and comprehensive protection design, it has obvious advantages over similar products.

Fast running version or long service life are optional.

CE approved

Applications

Water treatment system
Water-saving and other eco-friendly system
Small equipment for automatic control
Pharmaceutical equipment
Excellent in Ozone Sterilizer and ClO₂ Generator

Technical Data

Rated Torque	Nominal Voltage	Power	Wiring	Running Time	Protection Class	Max Pressure	Medium Temp.
20NM	DC24V	85W	B3S/BD3S	1S	IP67 or F Type	1.0Mpa	UPVC: 0-45℃ CPVC:0-90℃
15NM	DC12V	15W/ 25W@KT	B2S/B3S/BD3S/KT32S	15S
20NM	DC12Vh	25W@10S 36W@KT		10S
20NM 15Nm@6S	AC/DC24V	15W@10S/25W@6S/36W@KT		10S/6S
20NM 15Nm@6S	AC/DC95-265V	15W@10S/25W@6S/36W@KT	B3S/BD3S/KT32S	10S/6S
20NM	AC24V	15W	B3S/BD3S	15S
	AC110V
	AC220V

Main Components Diagram

Main Components

No.	Components	Material	Qty
1	Body	UPVC/CPVC	1
2	Ball	UPVC/CPVC	1
3	Ball seat	PTFE	1
4	Cable connector	Nylon/nickel-plated brass	1
5	Housing	PC alloy/die-casting aluminum	1
6	Label	PC	1
7	Indication window	Transparent PC	1
8	Hexagonal wrench	Tool steel	1

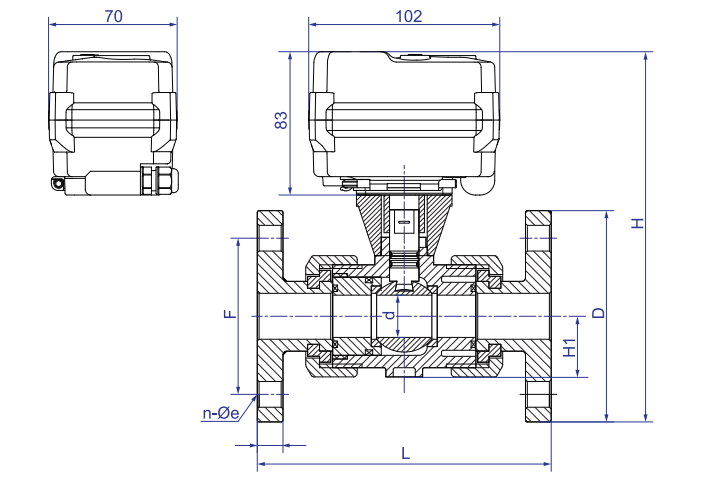

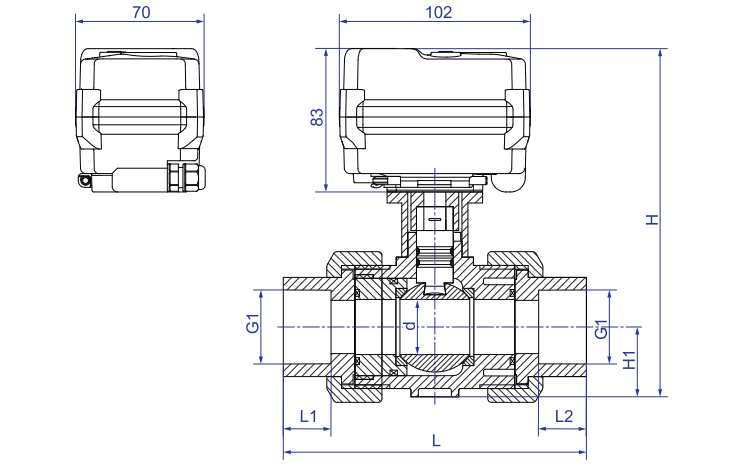

Dimensions【DN15-DN50, thread/socket】	Dimensions【DN15-DN50, flange】

Dimensions(mm)

DN	d	L1=L2		G1				L			D		F		n-Φe		T	H			W(Kg)
		thread/ socket		thread		socket		thread/ socket	flange		flange		flange		flange		flange	thread/ socket	flange		W(Kg)
		GB	ANSI	GB	ANSI	GB	ANSI	GB/ ANSI	GB	ANSI	GB	ANSI	GB	ANSI	GB	ANSI	GB/ ANSI	GB/ ANSI	GB	ANSI	thread/ socket	flange
DN15	13	16	22.22	G1/2″	NPT1/2″	20.3	21.54	112	130	143	95	89	65	60	4-14	4-16	13	150.0	174.0	171.0	0.9	1.2
DN20	18	19	25.40	G3/4″	NPT3/4″	25.3	26.87	132	150	172	105	98	75	70	4-14	4-16	14	165.0	189.0	185.5	1.0	1.3
DN25	23	22	28.58	G1″	NPT1″	32.3	33.65	144	160	187	115	108	85	79	4-14	4-16	14	183.0	206.5	203.0	1.1	1.6
DN32	30	26	31.75	G1-1/4″	NPT1-1/4″	40.3	42.42	165	180	190	140	117	100	89	4-18	4-16	16	198.5	226.5	215.0	1.4	2.1
DN40	38	31	34.93	G1-1/2″	NPT1-1/2″	50.3	48.56	171	200	212	150	127	110	98	4-18	4-16	16	217.5	242.5	231.0	1.6	2.5
DN50	48	38	38.10	G2″	NPT2″	63.3	60.63	200	230	234	165	152	125	121	4-18	4-19	16	244.5	266.0	259.5	2.6	3.7

Notes:DIN,ANSI,GB,NPT ect is optional.

Functional Data

Angle of Rotation	90°±2°
Degree of Protection	IP67 As Per En60529/GB4208-2008(all directions) F type [damp-proof,adding dehumidifying heater]
Manual Override	Matching hexagon wrench(only using at no power)
Position Indicator
