Description

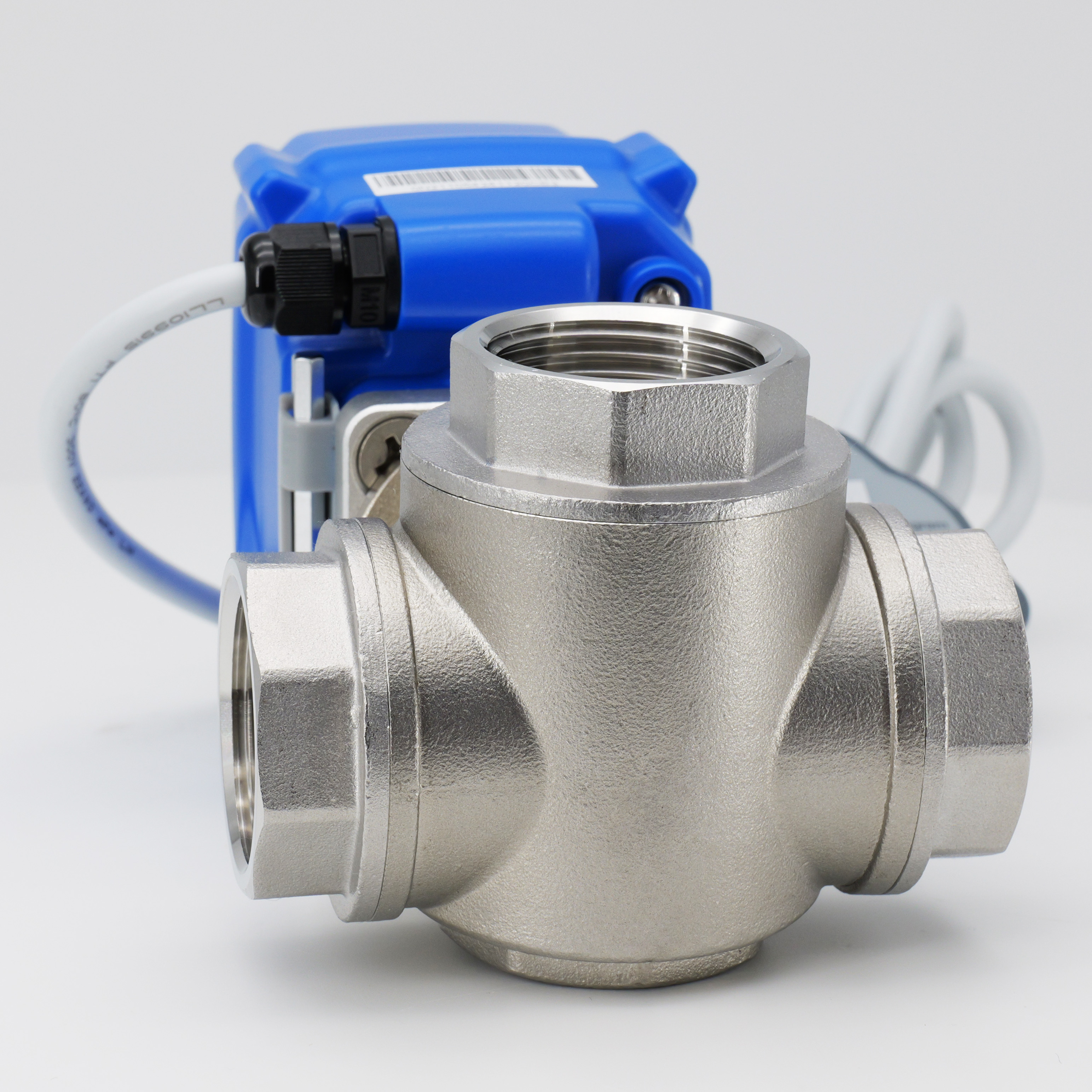

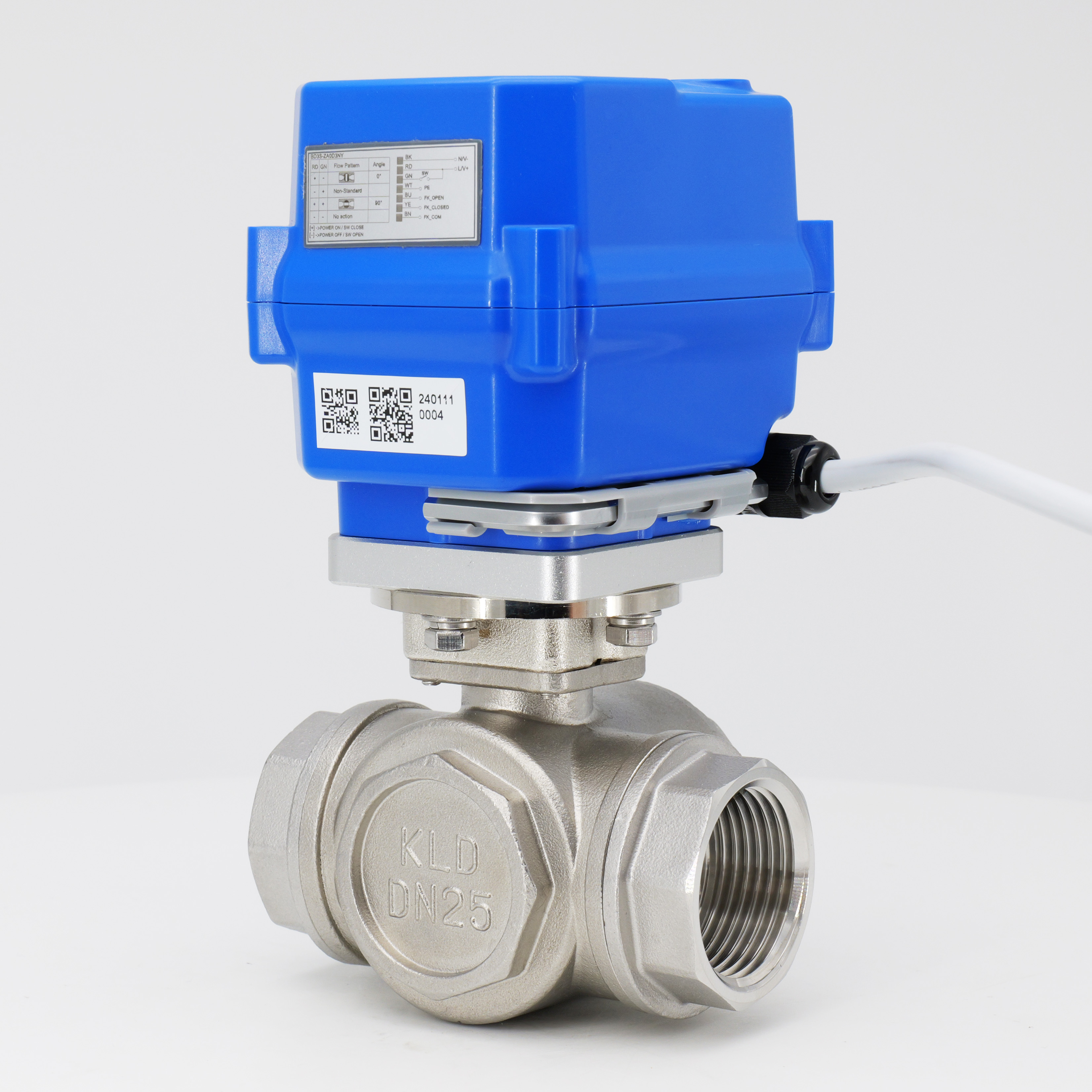

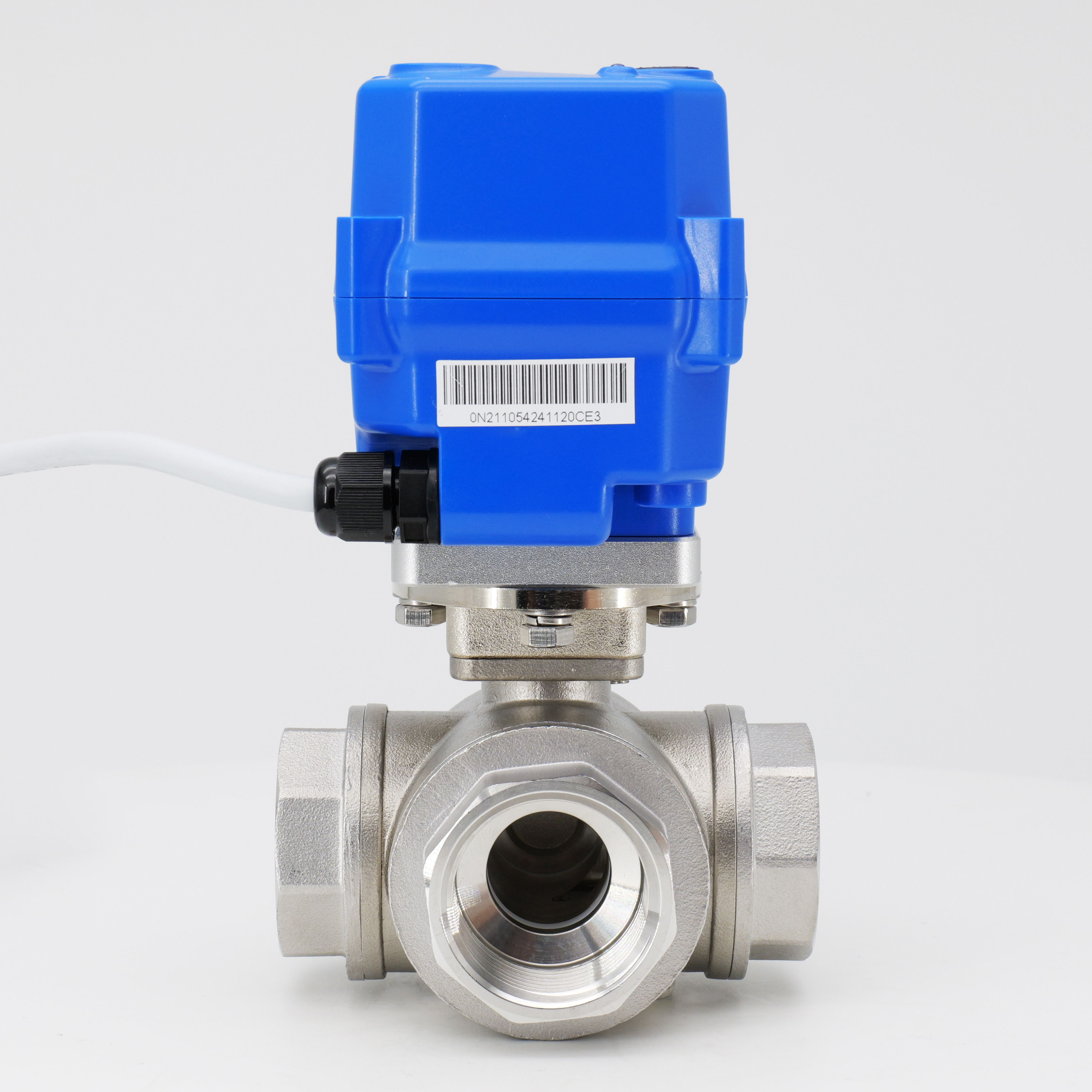

The KLD100 3-way motorized ball valve (metal, 1/2" to 1") is made of stainless steel SS304 or SS316, with an option for a brass valve body, and features manual or electric operation. The stainless steel material is corrosion-resistant, ensuring long-term stable operation. The valve is driven by a brushless motor, which ensures stable and reliable operation and has a longer lifespan compared to brush motors.
Technical specifications include
Valve type: Three-way electric ball valve
Sizes: DN15, DN20, DN25
Pressure: Maximum 1.0MPa (PN10)
Flow: Varies with valve size and application
Medium temperature: 0°C to 100°C
Ambient temperature: -15°C to 45°C
The KLD100 3-way motorized ball valve (metal, 1/2" to 1") has significant advantages in terms of material, functionality, flow rate, medium compatibility, temperature range, and pressure rating. It is a high-performance ball valve with a wide range of applications.
Fast running version or long service life are optional.
CE approved
Applications
Water treatment system
Water-saving and other eco-friendly system
Small equipment for automatic control
Technical Data
Rated Torque | Nominal Voltage | Power | Wiring | Running Time | Protection Class | Max Pressure | Medium Temp. |
6NM | DC24V | 24W | B2S/B3S/BD3S | 2S | IP67 or F Type | 1.0Mpa | 0-100℃※ |
10NM/6NM@KT | AC/DC 95-265V | 12W/18W@KT | B3S/BD3S/KT32S | 5S | |||
AC/DC24V | B2S/B3S /BD3S/KT32S | ||||||
DC12V | |||||||
10NM | AC24V | 12W | B3S | 10S | |||
AC110V | |||||||
AC220V |
※It needs to add high-temperature bracket if medium temperature is over 100 ℃.
DN | d | G1 | L1=L2=L3 | L | L4 | H1 | H2 | H | F | W(Kg) |
DN15 | 12 | G1/2″ | 15 | 67 | 54.5 | 17.00 | 42.25 | 134.85 | 27 | 1.0 |
DN20 | 15 | G3/4″ | 15 | 77 | 64.0 | 20.25 | 44.25 | 140.10 | 31 | 1.0 |
DN25 | 20 | G1″ | 18 | 89 | 72.5 | 25.50 | 54.50 | 155.60 | 38 | 1.2 |
Notes:BSP,NPT,GB ect. is optional.
Functional Data
| Angle of Rotation | 90° ± 2° |
| Degree of Protection | IP67 As Per En60529/GB4208-2008(all directions) F type [damp-proof,adding dehumidifying heater] |
| Manual Override | Matching hexagon wrench(only using at no power) |
| Position Indicator |  |
Working Conditions
| Ambient Temp. | -15℃<t<45℃ (can be customized for other temp.) |
| Ambient Humidity | 5-95%RH,non-condensing |
| Medium Temp. | 0-100℃ |
※Subject to technical changes
