Description

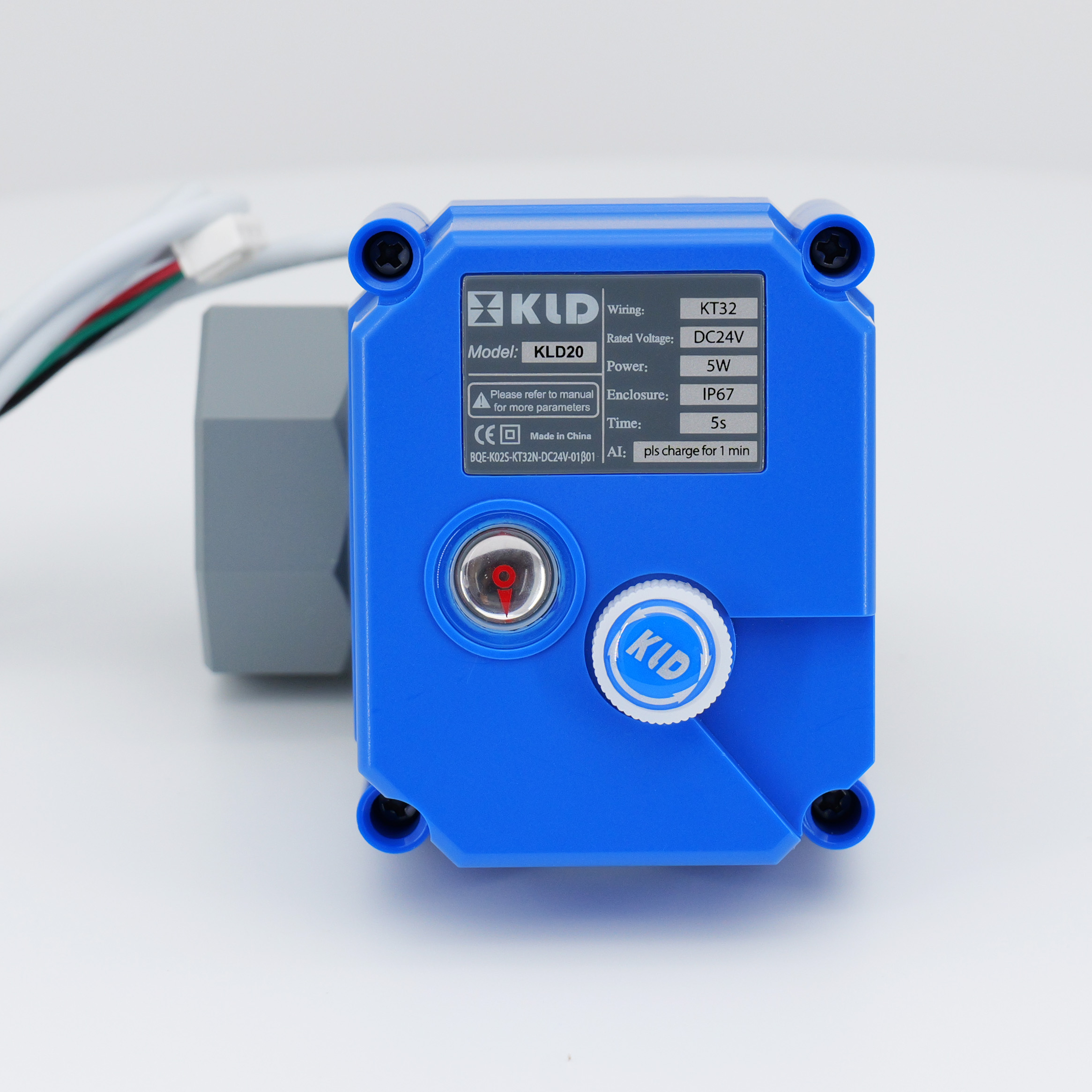

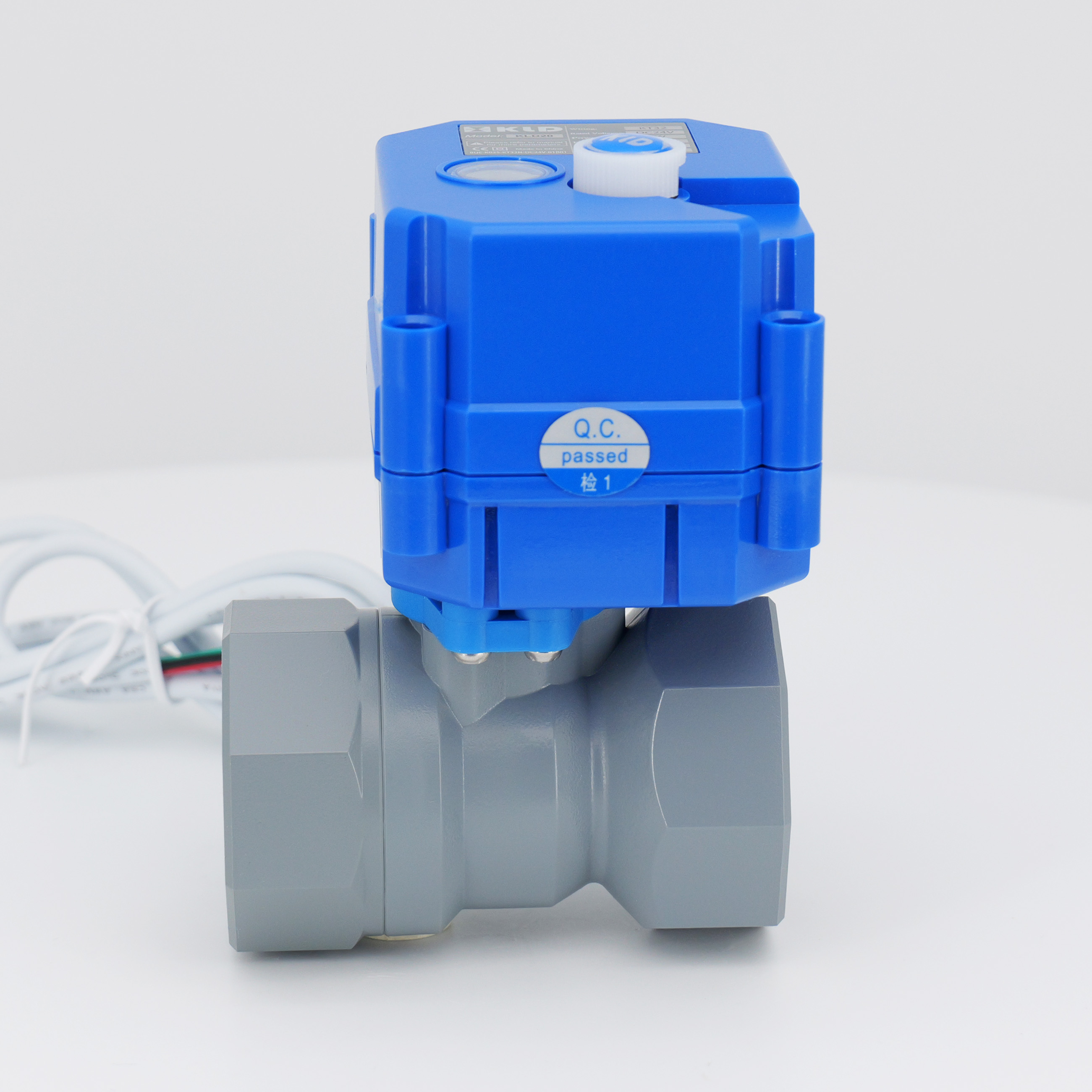

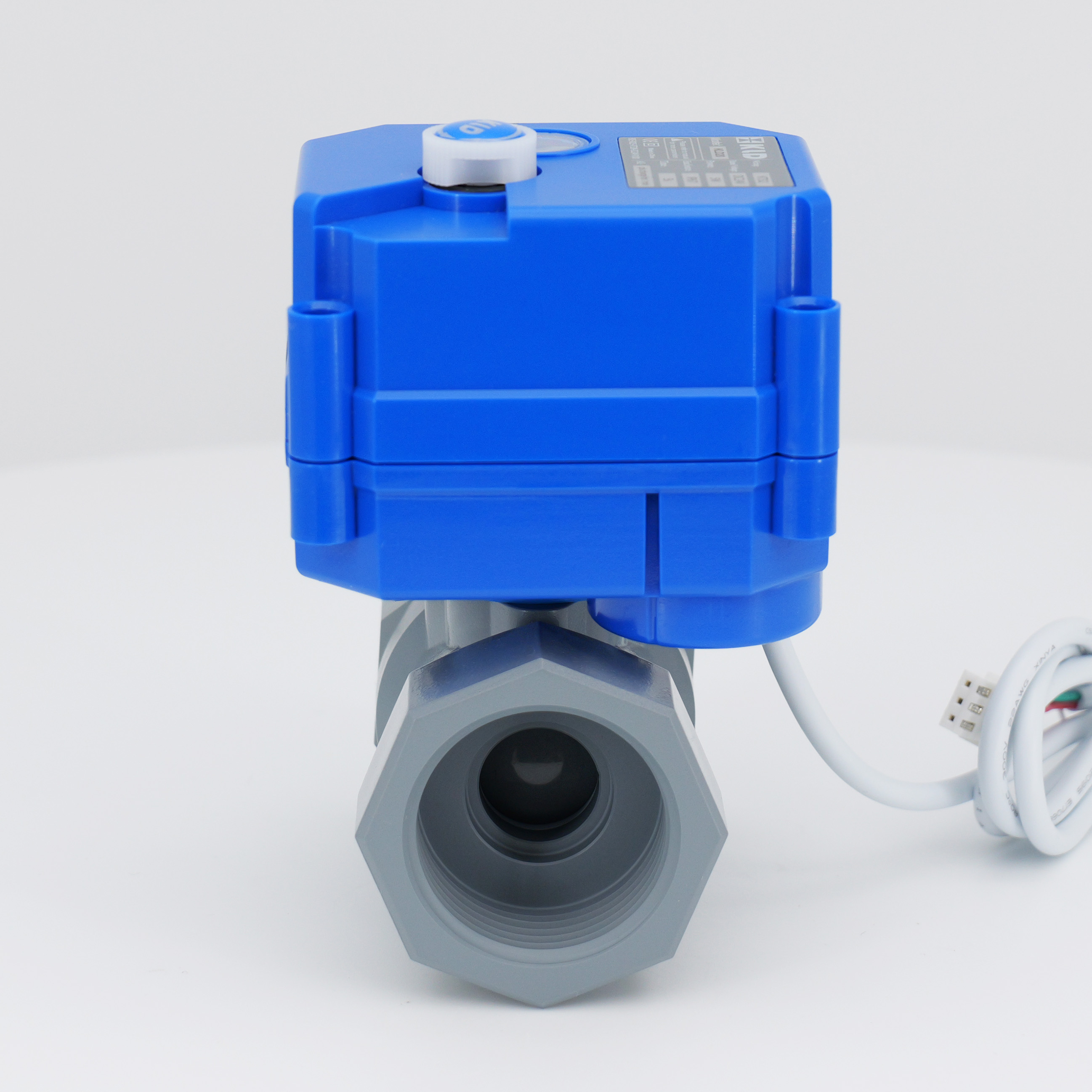

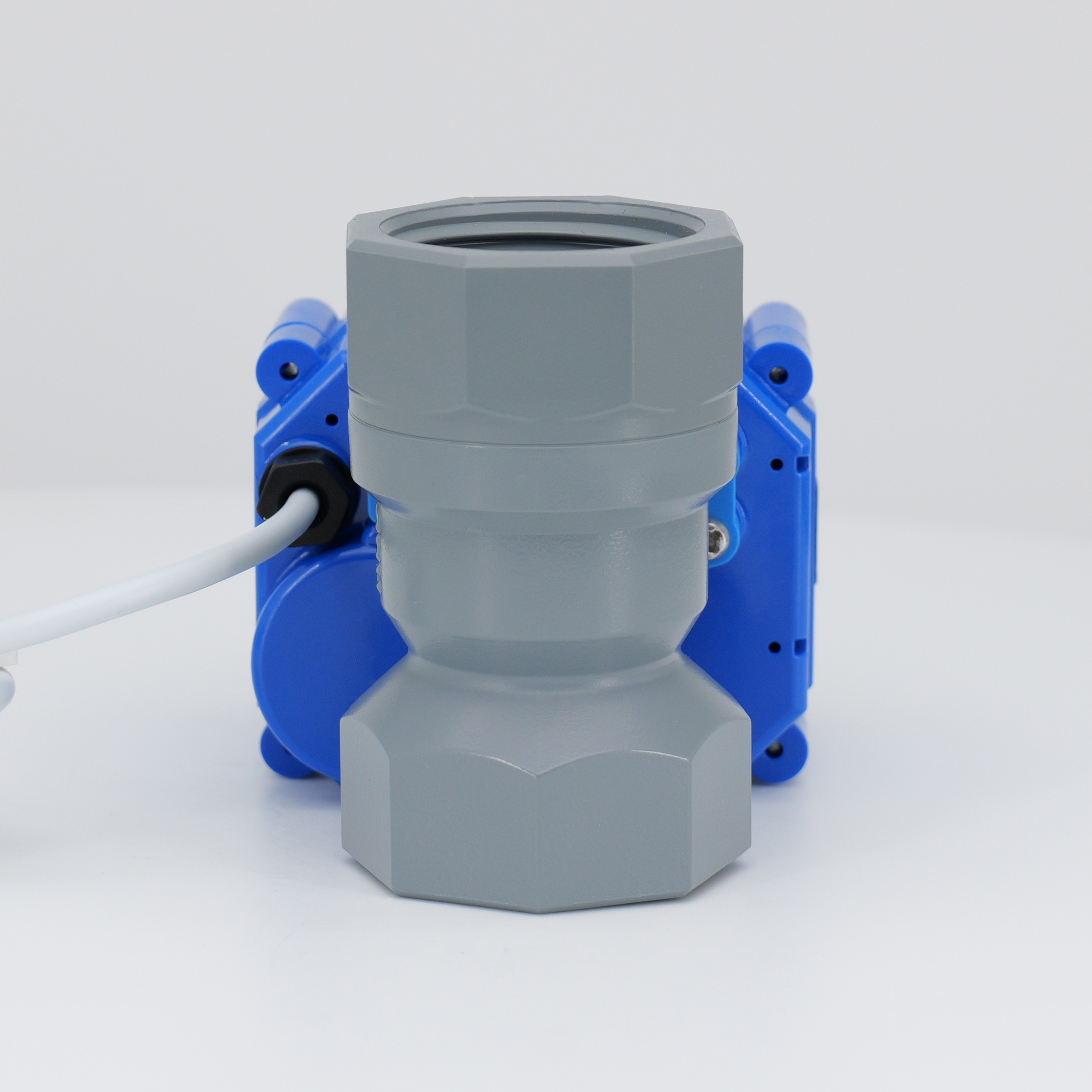

The KLD20S series electric ball valves are specifically designed for ozone sterilizers and ClO2 generators. Made of CPVC+FPM materials, they offer excellent corrosion resistance. These valves feature a compact size, suitable for small-scale equipment, and incorporate a patented floating seal structure, providing a long service life of up to 70,000 to 100,000 cycles. They have an IP67 protection rating, with an F-type also available.
Technical specifications include
Valve Type: Electric ball valve
Sizes: DN15, DN20, DN25
Pressure: Maximum 1.0 MPa (PN10)
Flow: Varies with valve size and application
Medium Temperature: 0°C to 90°C
Ambient Temperature: -20°C to 45°C
These valves are suitable for corrosive media (such as acids and alkalis), as an alternative to unreliable solenoid valves, in environmental water treatment systems, and small-scale industrial automation equipment. They are particularly effective in ClO2 ,O3 systems and sea water systems. Compact size is very suitable for limited space application, besides, it is very economical option for water treatment system if you do not mind flow rate. If you need bigger flow rate, you can choose 100N/200N full bore plastic valves instead. Connection dimensions and weights are provided for the different sizes.
Fast running 2s version or long service life are optional.
CE approved
Applications
Used for corrosive medium such as acid and alkali,etc
Replacing solenoid vale,particularly when soIenoid valve cannot work reliabIy
Enviroment water treatment system
Small industrial automation equipment
Excellent in ClO2 O3 system
Technical Parameters
| Series | Working Voltage | Max Power | Manual override | Max Torque | Oper- ating time | Static current (dcsV) | Enclosure | Max Pres- sure | Medium Tempe- rature | Ambient temperature | Hum- idity | |||
| KLD20S | 5V | 3W | available | 2N.M | about 5S | IP67 0-15mA | F type <65mA | IP67 | F type | 1.0Mpa | 0-90°C | -20°C<t <45°C | ≤85% non-condensing | |
| 12V,24V | 4W | |||||||||||||
| 110V,220V | 5W | |||||||||||||
Main Components Diagram
Main components
Parts | Material |
Valve body | CPVC |
Valve ball | CPVC |
Stem | CPVC |
Ball seat | PTFE |
| Seal | FPM |
Dimension
|  |
Plastic ball valve connection size (threading)(unit:mm)
Plastic ball valve connection size (socket)(unit:mm)
Notes:Size can be changed to 1/2" and 3/4". ManuaI override can be taken out. The dimension is the same , just without manuaI wheeI.
 | Instructions for ManuaI override:
|
we can accept feedback customization.please contact sales for more details.
Manual shaft and hand-wheel will be replaced by another upper cover if manual override function is not needed.
Actuators are not direct-mount-on.Actuators are not recommended to be sold separately.
※Subject to technical changes
