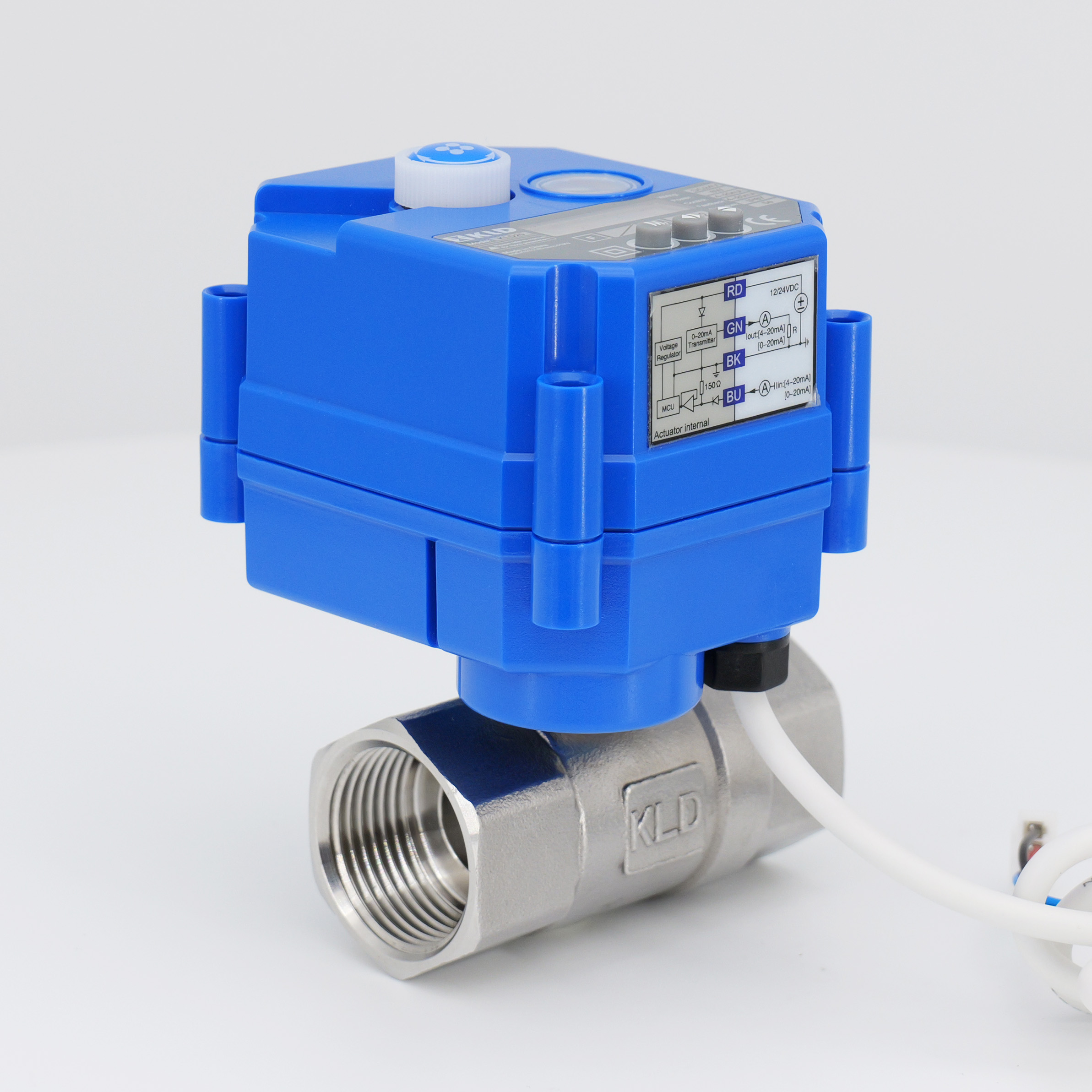

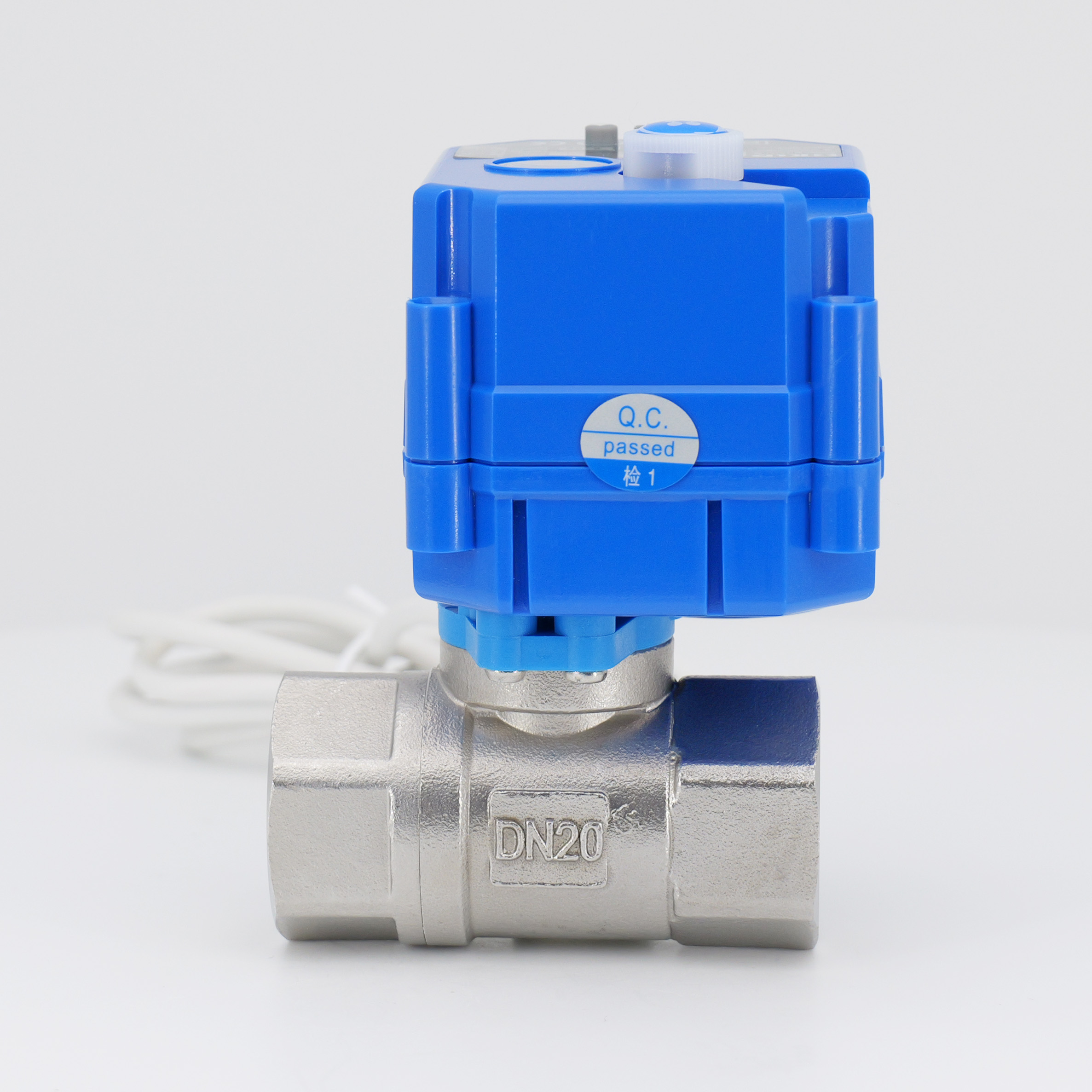

KLD20T modulating 2-way motorized ball valve(1/4" to 1")

Description

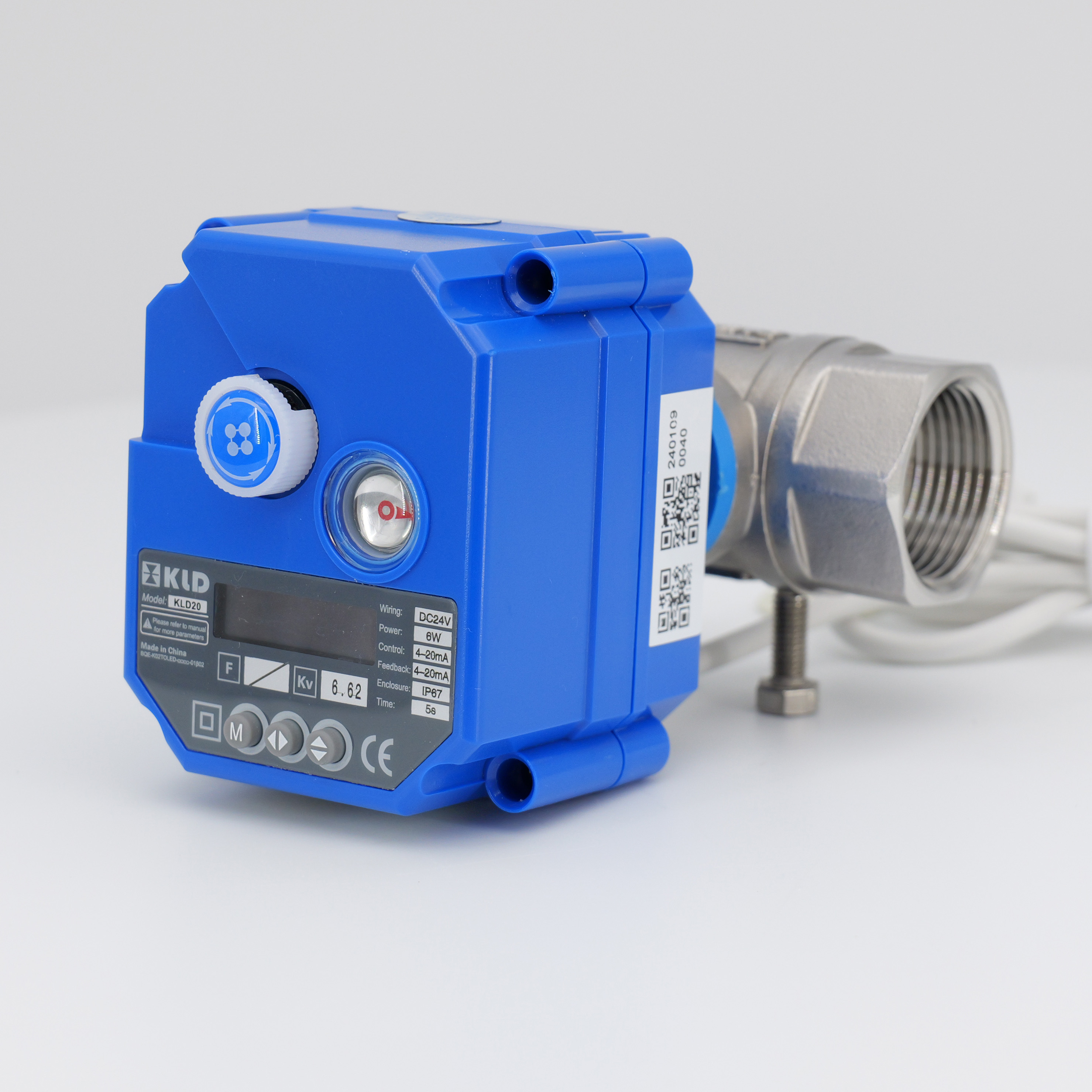

The KLD20T modulating 2-way motorized ball valve (1/4" to 1") features a special motor for long service life and an output with rolling bearings, with the actuator lifespan reaching up to 500,000 cycles. It employs patented floating seal technology to prevent scaling, making it suitable for long-term stationary use. The compact size is ideal for small equipment, and manual operation is optional. The valve comes with an intelligent interface and an OLED display to indicate the valve position. Optional features include fail-safe functionality and an LED indicator for on/off/alarm feedback. Fail safe(capacitor return) function, you can choose normally close or normally open.

Technical specifications include

• Valve Type: 2-way modulating electric ball valve

• Size: DN8, DN10, DN15, DN20, DN25, DN32

• Connection: Threaded

• Pressure: Maximum 1.0 MPa (PN10)

• Flow Characteristics: Linear, equal percentage, quick opening optional

• Medium Temperature: 0°C to 100°C

• Ambient Temperature: -20°C to 45°C

The KLD20T modulating 2-way motorized ball valve (1/4" to 1") is designed for fluid regulation and control, particularly suitable for use in small-bore pipelines of equipment.

Parameters

• Control input:4-20mA,0-5V,1-5V, 0-10V,2-10V,0-20mA are optional

• Positive acting or negative acting adjustable *1

• Adjustable dead zone: 1%-9.9%

• High accuracy±1%

• Flow characteristics optional in Linear, approaching equal percentage and quick operating,etc

1. *Positive acting:4mA-valve close;20mA-valve open; Negative acting:4mA-valve open;20mA-valve close;


Technical Parameters

Dimensions

Fullport ball valve connection size(unit:mm)

Reduced port ball valve connection size(unit: mm)

Notes:Reduced bore valve DN32 only has brass.

Instructions for Manual Override		Flow Characteristics
	It is only permitted to use when power is cut. Lift the hand-wheel,and turn it left or right slowly until the valve is in place. When the red line on the indicator is horizontal, the valve is on; when vertical, the valve is off. Press down hand-wheel after using manual override in order to work properly when power is supplied.

KV purchase guide[ball valve]

※Subject to technical changes
